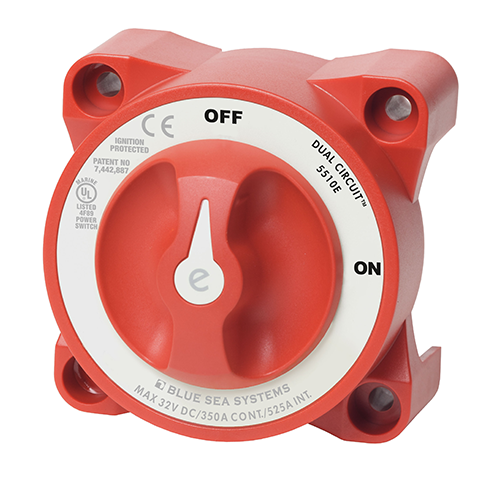

BLUE SEA BATTERY SWITCH 5510E
BLUE SEA BATTERY SWITCH 5510E
DISCRIPTION
DISCRIPTION
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Voltage | 32V DC |
| Continuous Rating | 350A |
| Intermittent Rating (5 min) | 525A |
| Starting Rating (30 sec) | 700A per circuit |
| Switching Rating | 25A |
| Alternator Field Disconnect (AFD) | No |
| Battery Combine | No |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Cable Clearance for 4/0 AWG | 1.10 in (27.94 mm) |
| Recommended Cable Size | 4/0 AWG (120mm²) |
| Mounting Hole Size | Accepts 1/4" (M6) screw |
| Stud Material | Tinned Copper |
| Weight | 1.16 lb (0.53 kg) / 1.30 lb (0.59 kg) |
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Smarter Power. Safer Seas. Trusted Gear.
Protects Your System
Prevents starter battery drain by isolating house loads when the engine is off—ideal for dual battery setups.
Corrosion Protection
Blocks low-voltage DC currents that cause galvanic corrosion while maintaining full AC safety ground connection.
Clean Sine Wave Output
Provides a pure, clean sine wave to protect sensitive electronics and ensure optimal performance of onboard devices.
