Blue Sea Switch Battery M On/Off W/Knob 6006
Blue Sea Switch Battery M On/Off W/Knob 6006
DISCRIPTION
DISCRIPTION
🔧 Product Specifications – Single Circuit ON-OFF Battery Switch
🧩 General Information
|
Parameter |
Details |
|
Switch Type |
Single Circuit ON-OFF |
|
Function |
Switches a single battery to a single load group |
|
Color |
Red |
|
Switch Positions |
2 |
|
Battery Combine Feature |
No |
|
Battery Inputs |
1 |
|
Alternator Field Disconnect (AFD) |
No |
🔌 Electrical Ratings
|
Specification |
Value |
|
Maximum Voltage |
48V DC |
|
Continuous Rating |
300A |
|
Intermittent Rating (5 min) |
500A |
|
Starting Rating (30 sec) |
900A |
|
Switching Rating |
25A |
⚙️ Mechanical Specifications
|
Feature |
Detail |
|

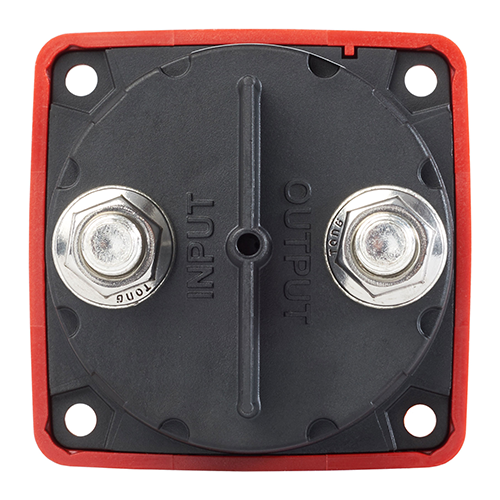

Terminal Stud Size |
3/8" - 16 (M10) |
|
Stud Material |
Tinned Copper |
|
Terminal Stud Torque |
120 in-lb (13.56 Nm) |
|
Cable Size to Meet Ratings |
4/0 AWG (120mm²) |
|
Cable Clearance (for 4/0 AWG) |
1.12 in (28.45 mm) |
|
Mounting Holes |
Accept #10 screw |
|
Weight |
0.65 lb (0.29 kg) |
