D Shackle, AISI 316
D Shackle, AISI 316
DISCRIPTION
DISCRIPTION

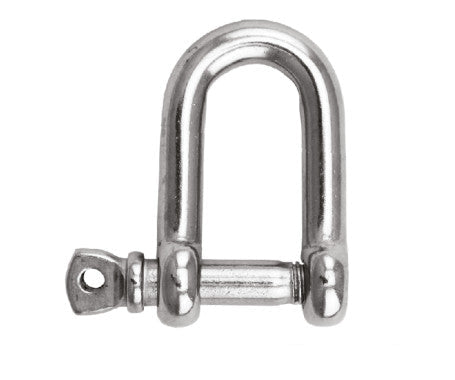

🔩 D Shackle – AISI 316 Stainless Steel
Precision-forged marine-grade D shackles for secure rigging, lifting, and marine hardware.
|
Size (Pin Ø) |
Bow Width (mm) |
Inside Length (mm) |
Working Load Limit (WLL) |
Breaking Load |
Weight (approx) |
|
6 mm |
~12 mm |
~24 mm |
~200 kg |
~800 kg |
~40 g |
|
8 mm |
~16 mm |
~32 mm |
~400 kg |
~1600 kg |
~80 g |
|
10 mm |
~20 mm |
~40 mm |
~650 kg |
~2600 kg |
~140 g |
|
12 mm |
~24 mm |
~48 mm |
~1000 kg |
~4000 kg |
~220 g |
|
16 mm |
~32 mm |
~64 mm |
~1600 kg |
~6400 kg |
~400 g |
|
20 mm |
~40 mm |
~80 mm |
~2500 kg |
~10,000 kg |
~750 g |
⚙️ Material: AISI 316 Stainless Steel (marine-grade)
🔒 Pin Type: Threaded or captive pin, depending on model
🌊 Corrosion Resistance: Excellent — ideal for saltwater and industrial use
