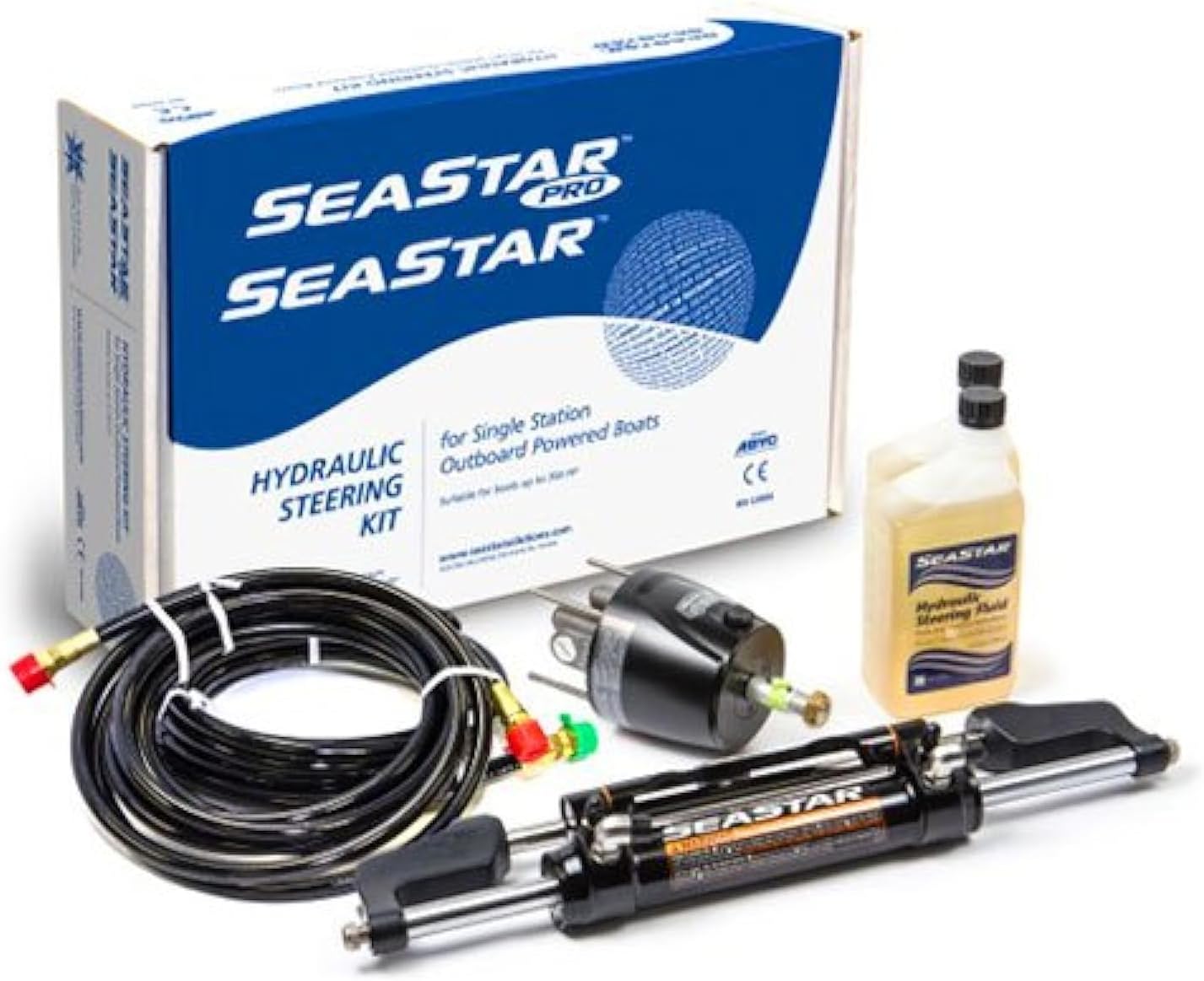

Dometic SeaStar Hydraulic Steering Kit 24
Model No.: HK6324A-3
System Overview:
The SeaStar HK6324A-3 hydraulic steering kit delivers unmatched comfort, control, and reliability for single and dual non-power-assisted outboard engines. Designed for high-performance applications with outboards up to 350HP (or 700HP combined for counter-rotating dual setups) using ABYC standard engine tilt tubes.
Included Components:
|
Component |
Model/Specification |
Description |
|
Helm Pump |
HH5271-3 |
Front mount, 1.7 cu in displacement, 3" dash cutout, 3/4" taper shaft |
|
Cylinder |
HC5345-3 |
8.3 cu in displacement |
|
Hydraulic Oil |
SeaStar Oil |
2 Quarts |
|
Hydraulic Hoses |
HO5124 |
24 ft x 2 pcs with brass fittings (Optional upgrade to stainless steel – exclusive offering) |
Key Features:
- Low friction design for smooth, effortless steering
- 5 turns lock-to-lock (single cylinder setup)
- Compact helm footprint – requires only a 3″ dash cutout
- Standard 3/4″ tapered shaft
- Suitable for boats up to 60 MPH
(For vessels over 60 MPH, use SeaStar HK7500A-3) - Can be upgraded for:
- Dual station setups
- Dual outboard configurations
- Optional stainless steel hose fittings available – ideal for saltwater environments (exclusive to this supplier)
Technical Specifications:
|
Parameter |
Specification |
|
|
Engine Compatibility |
Up to 350HP (Single), 700HP (Dual counter-rotating) |
|
|
Boat Speed |
Up to 60 MPH |
|
|
Helm Displacement |
1.7 cubic inches |
|
|
Cylinder Displacement |
8.3 cubic inches |
|
|
Pressure Rating |
1000 PSI (Helm & Cylinder) |
|
|
Shaft Material |
Stainless Steel |
|
|
Hose Length |
24 ft x 2 pcs |
|
|
Fitting Material |
Brass (Standard), Stainless Steel (Optional upgrade) |
|
