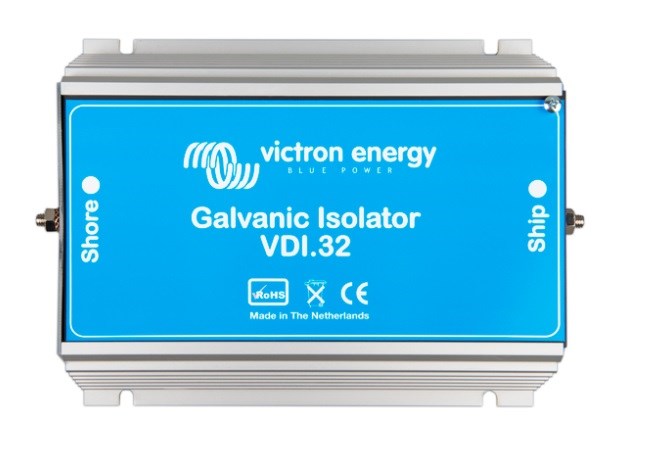

Galvanic Isolator VDI-32 A
Galvanic Isolator VDI-32 A
DISCRIPTION
DISCRIPTION
⚡ Galvanic Isolator – 32A Waterproof Model
✅ Purpose
-
Prevents electrolytic corrosion of underwater metals (hull, propeller, shaft, etc.)
-
Blocks low-voltage DC currents entering via shore power earth wire
-
Maintains safety while isolating harmful galvanic currents
⚙️ How It Works
-
Contains two diodes in anti-parallel configuration
-
Blocks current flow below ~1.4 VDC
-
Allows AC fault current to pass through during higher error voltages
-
Ensures RCD (residual-current device) will trip in fault conditions
-
-
Installed just behind the boat’s 230V shore power inlet
🛡️ Key Features
-
Waterproof (potted) design – IP67 rated
-
Anodized aluminum heat sink for thermal protection
-
Fail-safe design ensures safety in fault conditions
-
Maintenance-free operation
📐 Technical Specs
-
Max continuous current: 32 A
-
Peak current (20 ms): 3200 A
-
Connections: M6
-
Material: Anodized aluminum
-
Protection: IP67 (dust-tight and waterproof)
-
Weight: 2 kg
-
Dimensions (H × W × D): 63 × 164 × 200 mm
