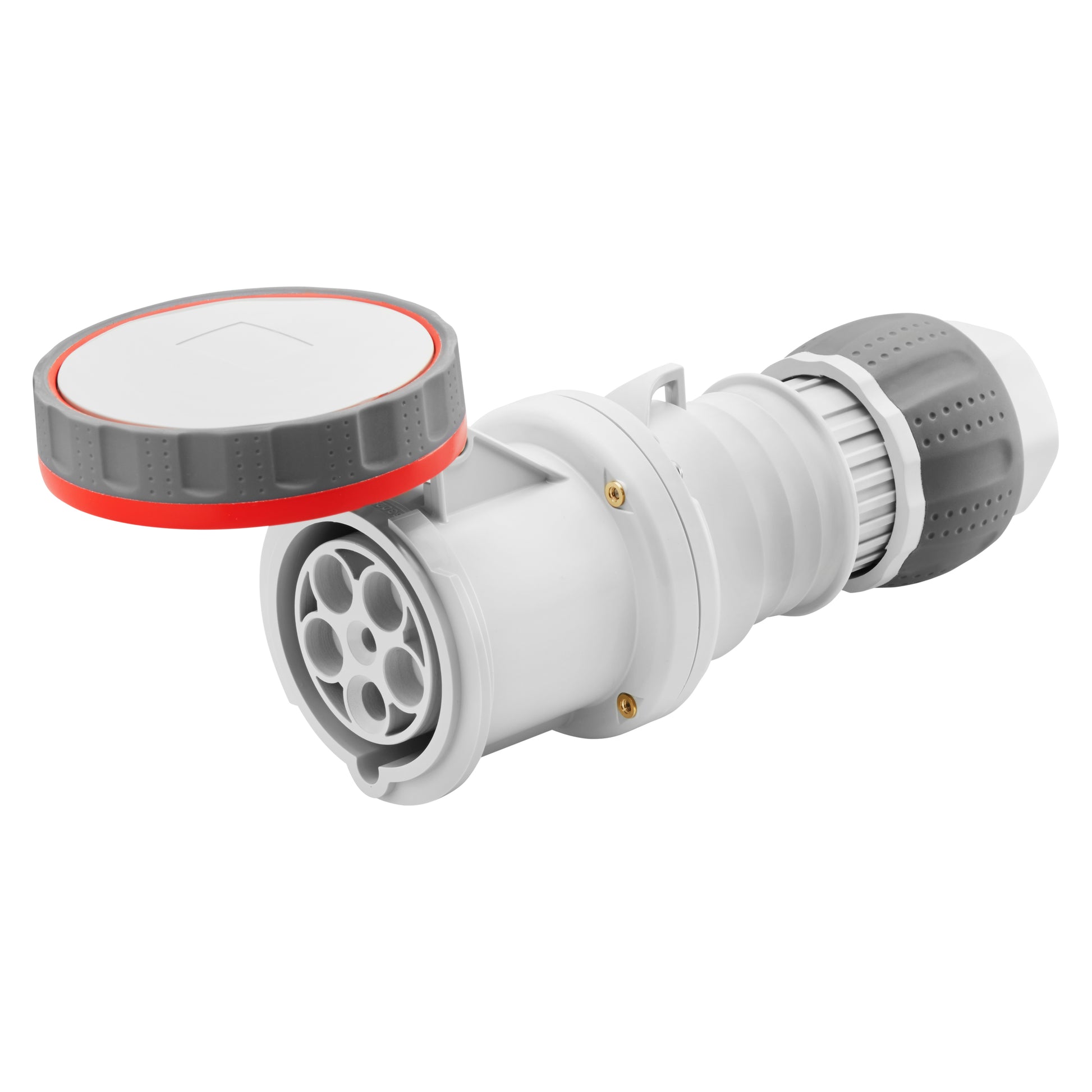

GEWISS CONNECTOR - 3P+N+E 125A - 6H GW62061H MANTLE TERMINAL
GEWISS CONNECTOR - 3P+N+E 125A - 6H GW62061H MANTLE TERMINAL
DISCRIPTION
DISCRIPTION
The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.
IP68: 2 bar/ 6 h in accordance with EN60529 after ageing according to Standard EN60309.
IP69: in accordance with EN60529 after ageing according to Standard EN60309.
GW63048PH, GW63052PH, GW63053PH, GW62060PH, GW62061PH: connectors with pilot contact and direct screw wiring.
CHARACTERISTICS: connection technology with mantle terminals. nickel-plated contacts.
All the versions are available with a pilot contact upon request.
