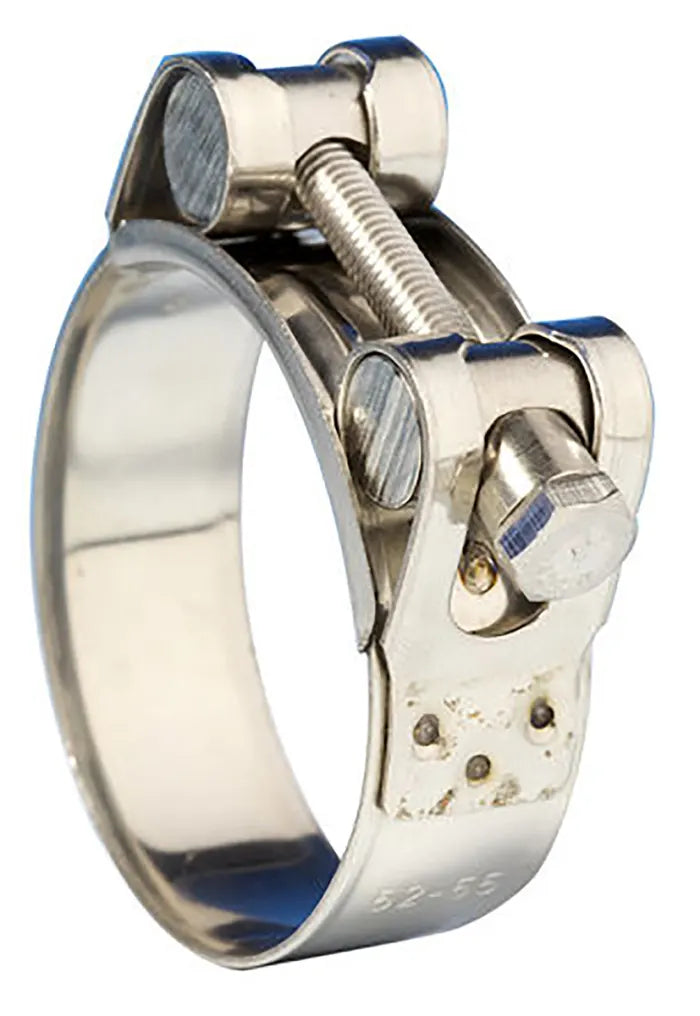

Heavy-Duty Hose Clamp Size Chart (AISI 316 Stainless Steel)
Heavy-Duty Hose Clamp Size Chart (AISI 316 Stainless Steel)
DISCRIPTION
DISCRIPTION
Heavy-Duty Hose Clamp Size Chart (AISI 316 Stainless Steel)
| Size Range (mm) | Band Width × Thickness (mm) | Screw Size |
|---|---|---|
| 17–19 | 0.6 × 18 | M5 × 40 |
| 20–22 | 0.6 × 18 | M5 × 40 |
| 23–25 | 0.6 × 18 | M5 × 40 |
| 26–28 | 0.6 × 18 | M5 × 40 |
| 29–31 | 0.8 × 20 | M6 × 50 |
| 32–35 | 1.2 × 22 | M6 × 55 |
| 36–39 | 1.2 × 22 | M6 × 55 |
| 40–43 | 1.2 × 22 | M6 × 55 |
| 44–47 | 1.2 × 22 | M6 × 55 |
| 48–51 | 1.2 × 22 | M6 × 55 |
| 52–55 | 1.2 × 22 | M6 × 55 |
| 56–59 | 1.2 × 22 | M6 × 55 |
| 60–63 | 1.2 × 22 | M6 × 55 |
| 64–67 | 1.5 × 24 | M8 × 60 |
| 68–73 | 1.5 × 24 | M8 × 60 |
| 74–79 | 1.5 × 24 | M8 × 60 |
| 80–85 | 1.5 × 24 | M8 × 60 |
| 86–91 | 1.5 × 24 | M8 × 60 |
| 92–97 | 1.5 × 24 | M8 × 60 |
| 98–103 | 1.5 × 24 | M8 × 60 |
| 104–112 | 1.5 × 24 | M8 × 70 |
| 113–121 | 1.5 × 24 | M8 × 70 |
| 122–130 | 1.5 × 24 | M8 × 70 |
| 131–139 | 1.7 × 26 | M10 × 85 |
| 140–148 | 1.7 × 26 | M10 × 85 |
| 149–161 | 1.7 × 26 | M10 × 85 |
| 162–174 | 1.7 × 26 | M10 × 85 |
| 175–187 | 1.7 × 26 | M10 × 85 |
| 188–200 | 1.7 × 26 | M10 × 85 |
| 201–213 | 1.7 × 26 | M10 × 85 |
| 214–226 | 1.7 × 26 | M10 × 85 |
| 227–239 | 1.7 × 26 | M10 × 85 |
| 240–252 | 1.7 × 26 | M10 × 85 |
