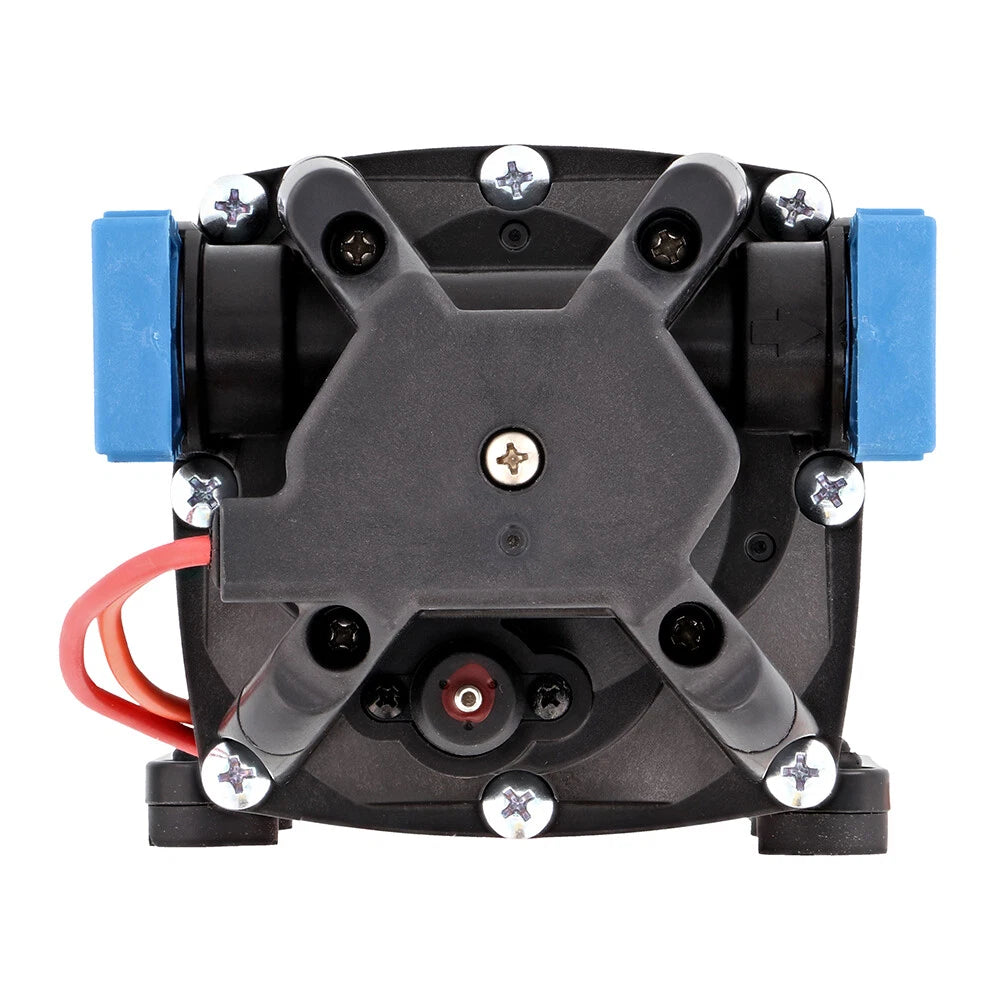

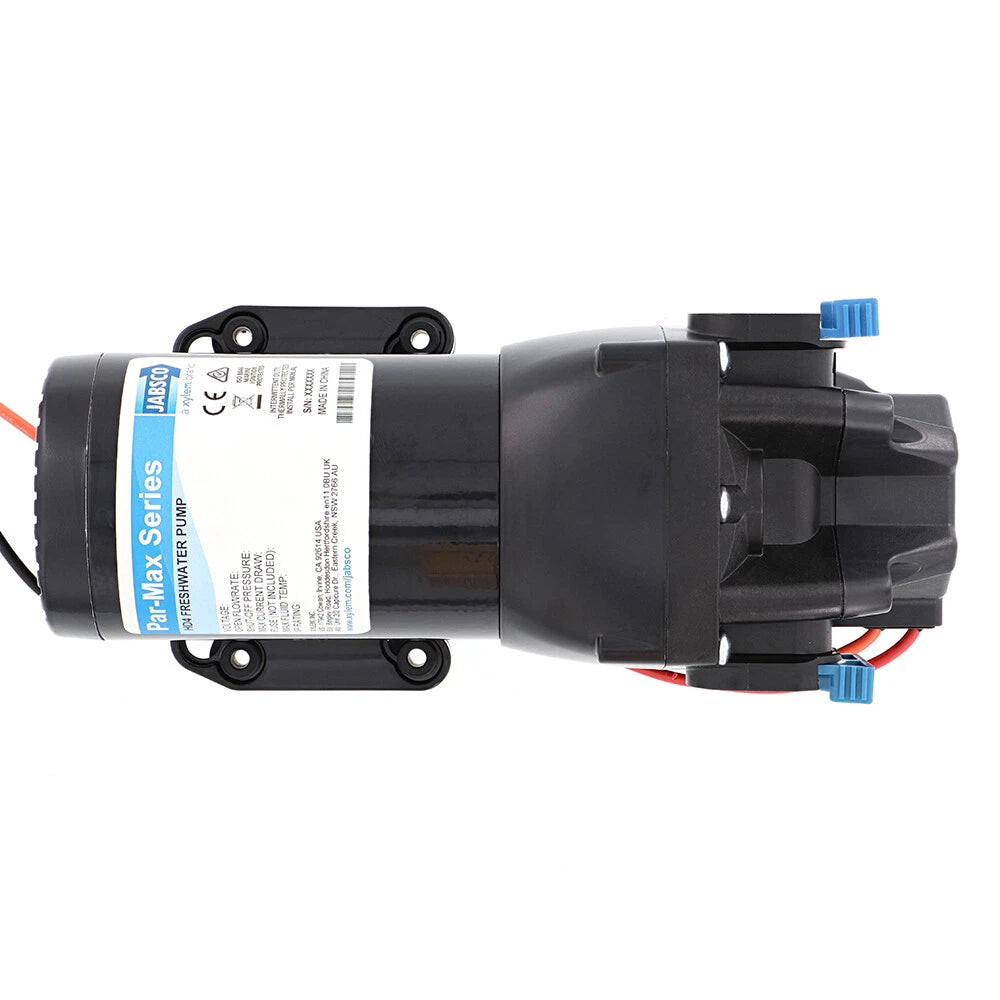

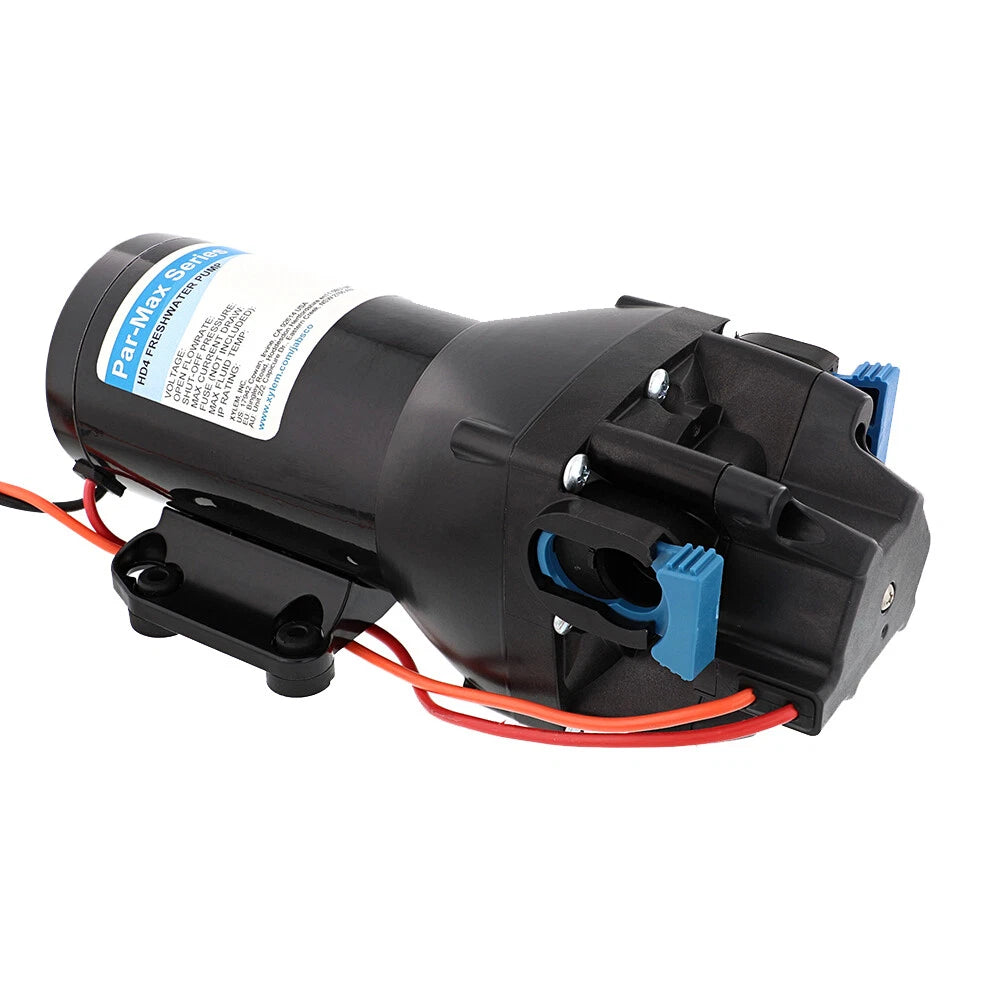

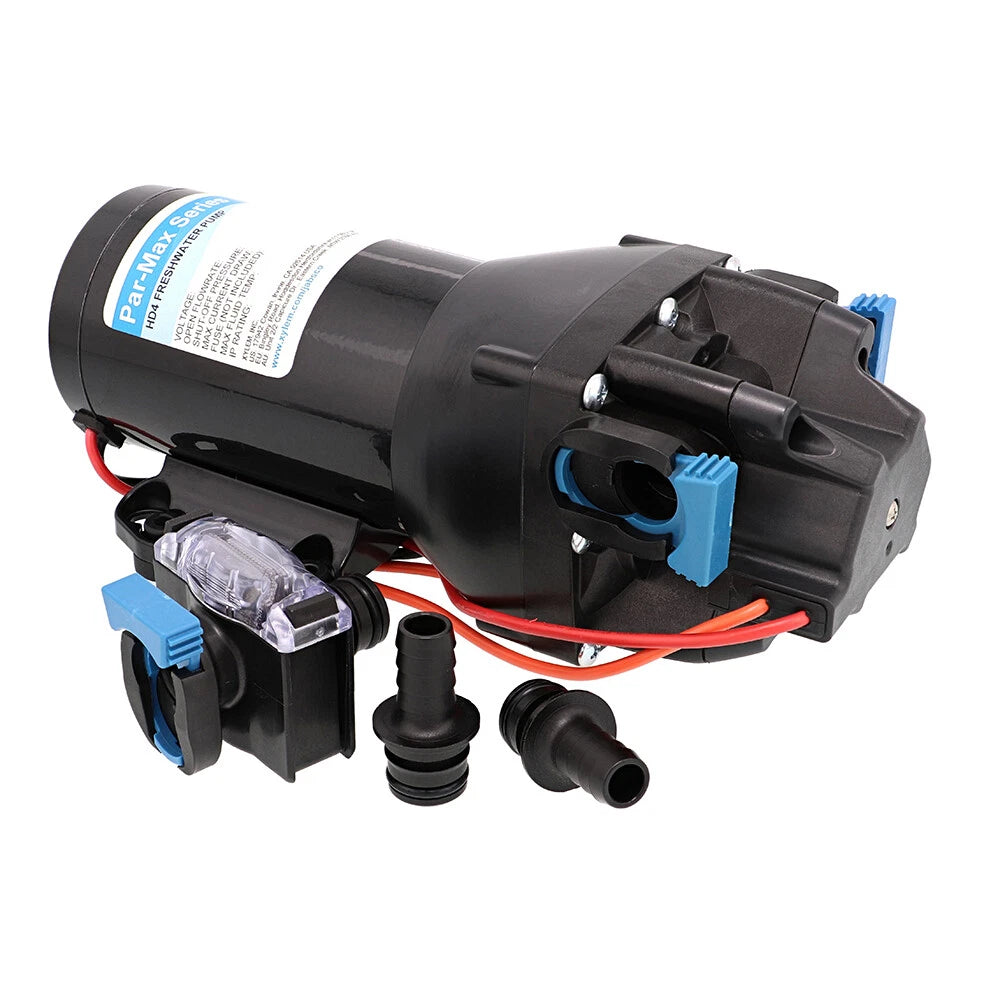

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump – 12V / 24V
Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump – 12V / 24V
DISCRIPTION
DISCRIPTION
Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump – 12V / 24V
A compact, high-performance freshwater pump designed for durability, efficiency, and quiet operation. Ideal for boats or RVs with multiple outlets, the Par-Max HD4 delivers consistent 4 GPM flow at 40 PSI, with heavy-duty components for extended life even in demanding environments.
Available Models:
-
12V Model: Q401J-115S-3A
-
24V Model: Q402J-115S-3A
Key Features:
-
Flow Rate: 4 GPM (15.1 LPM)
-
Shut-Off Pressure: 40 PSI (2.8 Bar)
-
Voltage Options: 12V DC or 24V DC
-
Self-Priming: Up to 7 ft (2.13 m)
-
Run-Dry Capable: Safe to operate without water
-
Integrated Sealed Pressure Switch: For automatic, on-demand operation
-
Integrated Bypass Module: Reduces cycling, provides smoother flow
-
Quiet Operation: Vibration-dampening mounts included
-
Quick Connect Ports: Easy installation and maintenance
Construction & Materials:
-
Motor: Brushed, permanent magnet TENV design
-
Pump Head Housing: Glass-filled polypropylene
-
Diaphragm: Co-molded TPV
-
Check Valves: EPDM
-
Max Inlet Pressure: 30 PSI (2.1 Bar)
-
Fluid Temp Range: 32°F – 140°F (0°C – 60°C)
-
Ingress Protection: IPX6
-
Certifications: CE, ISO8846 (Ignition Protected), RCM
