Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump – 6 GPM – 60 PSI
Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump – 6 GPM – 60 PSI
DISCRIPTION
DISCRIPTION

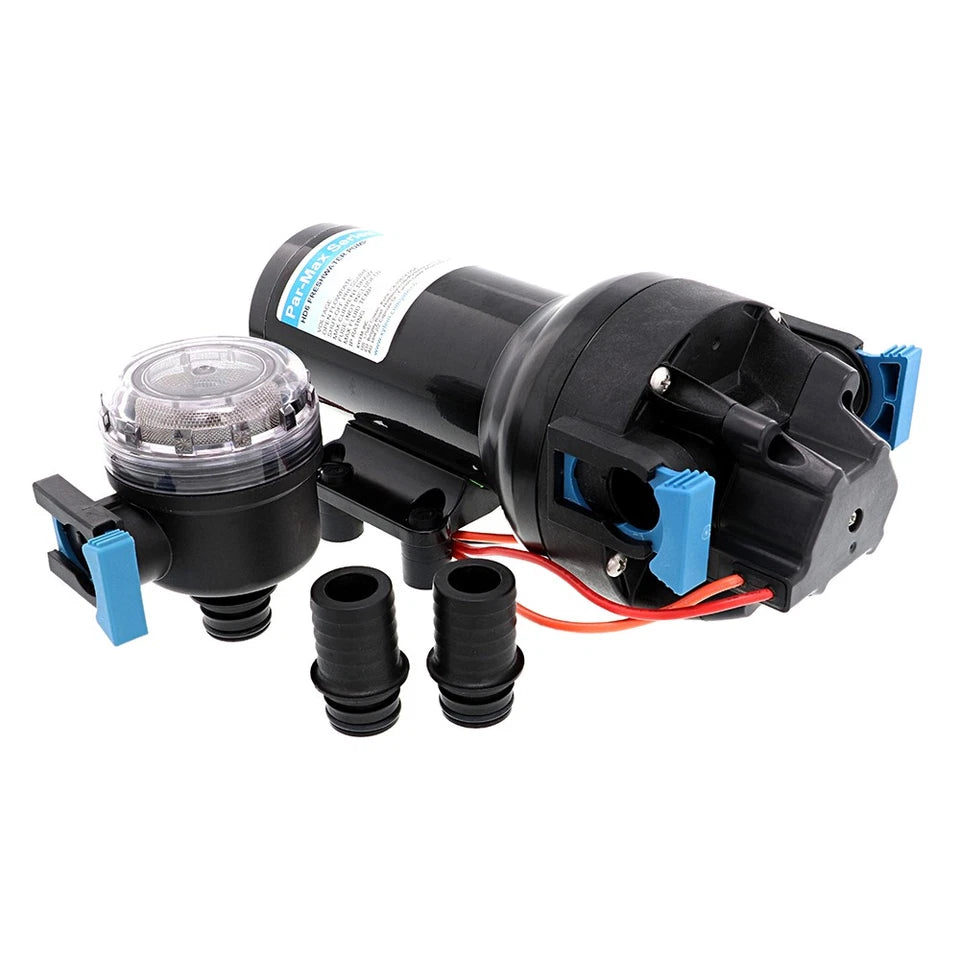

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump – 6 GPM – 60 PSI
A high-performance, heavy-duty water pressure pump designed for demanding marine and RV applications. The Par-Max HD6 delivers powerful water flow and pressure, ideal for larger systems with multiple outlets. Available in 12V and 24V models, both offering the same high output of 6 GPM at 60 PSI.
✅ Available Models:
- 12V DC – Part Number: Q601J-218S-3A
- 24V DC – Part Number: P602J-218S-3A
Key Features:
- Flow Rate: 6 GPM (22.7 LPM)
- Shut-Off Pressure: 60 PSI (4.1 Bar)
- Self-Priming: Up to 7 ft (2.13 m vertical lift)
- Run-Dry Protection: Operates safely without water
- On-Demand Operation: Integrated sealed pressure switch
- Smooth Performance: Internal bypass reduces cycling
- Quiet Running: Vibration-dampening mounting feet
- Quick-Connect Ports: Fast installation and maintenance
- Heavy-Duty Motor: Powder-coated shell with cast aluminum endbells and lower housing for extended life and improved pressure capability
Technical Specifications:
- Motor Type: Brushed, permanent magnet TENV
- Upper Housing Material: Glass fiber reinforced polypropylene
- Diaphragm: Co-molded TPV
- Check Valves: EPDM
- Max Inlet Pressure: 30 PSI (2.1 Bar)
- Fluid Temperature Range: 32°F – 140°F (0°C – 60°C)
- Ingress Protection: IPX6
- Certifications: CE, ISO8846 (Ignition Protected), RCM
