Jabsco Waste Water Pump – 12GPM / 12V,24V
Jabsco Waste Water Pump – 12GPM / 12V,24V
DISCRIPTION
DISCRIPTION

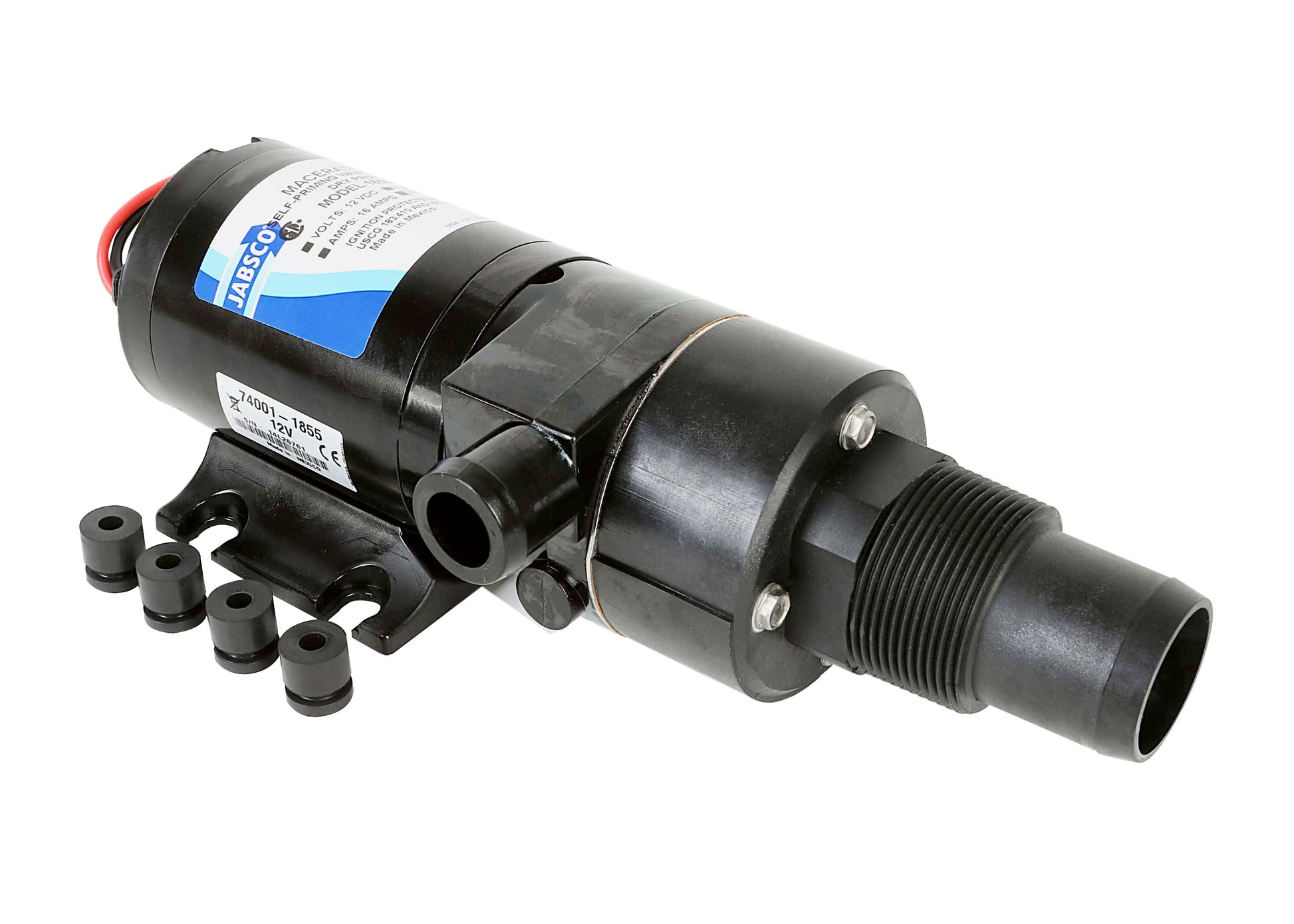

Jabsco Waste Water Pump – 12GPM / 12V & 24V
Type: Self-Priming Macerator Pump
Brand: JABSCO
Available Models:
- 12V – Part No. typically associated: 18590-2092
- 24V – Part No. typically associated: 18590-2094
Description:
The Jabsco 12GPM Waste Water Pump is a rugged and reliable macerator pump engineered for emptying marine holding tanks. It features a nitrile impeller and an integrated macerator blade, ensuring effective waste breakdown and discharge. With self-priming up to 1.2 m and dry-running protection, it is ideally suited for blackwater systems in marine environments.
Available in both 12V and 24V DC versions, this pump delivers high performance with safety features that protect against damage during dry operation.
Key Features:
- High-efficiency macerator and nitrile impeller
- Self-priming up to 1.2 meters
- Patented dry-running protection – shuts down pump to protect impeller
- Flow rate: up to 2760 L/h (12 GPM)
- Inlet connection: 1½" (38 mm)
- Outlet connection: 1" (25 mm)
- Compact and corrosion-resistant construction
- Ideal for waste discharge from marine holding tanks
Electrical & Physical Specifications:
|
Feature |
12V Model |
24V Model |
|
Voltage |
12V DC |
24V DC |
|
Current Draw |
16 A |
8 A |
|
Dimensions (L×W×H) |
300 × 120 × 82 mm |
300 × 120 × 82 mm |
|
Weight |
2.3 kg |
2.3 kg |
Applications:
Perfect for boats and yachts equipped with holding tanks. Can be used to pump waste overboard (where regulations permit) or to shore-based facilities. Suitable for blackwater systems, waste transfer, or tank evacuation.
