Long D Shackles, AISI 316
Long D Shackles, AISI 316
DISCRIPTION
DISCRIPTION

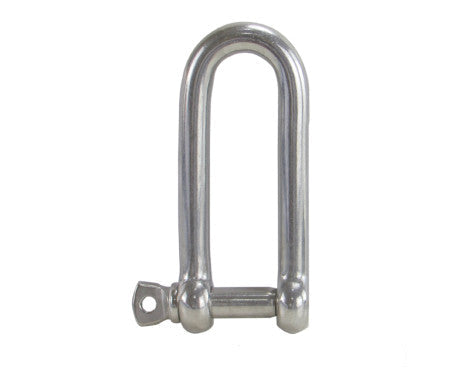

Long D Shackle – AISI 316 Stainless Steel
Extended-body D shackles offering increased reach and flexibility, ideal for marine, architectural, and rigging applications.
|
Size (Pin Ø) |
Inside Width (mm) |
Inside Length (mm) |
Working Load Limit (WLL) |
Breaking Load |
Weight (approx) |
|
8 mm |
~16 mm |
~50 mm |
~300 kg |
~1200 kg |
~90 g |
|
10 mm |
~20 mm |
~65 mm |
~500 kg |
~2000 kg |
~150 g |
|
12 mm |
~24 mm |
~80 mm |
~800 kg |
~3200 kg |
~230 g |
✅ Material: AISI 316 stainless steel – highly resistant to rust and corrosion
🔒 Pin Type: Screw-pin or captive-pin design
📏 Design: Longer internal length than standard D shackles, suitable for applications needing extra clearance or articulation
