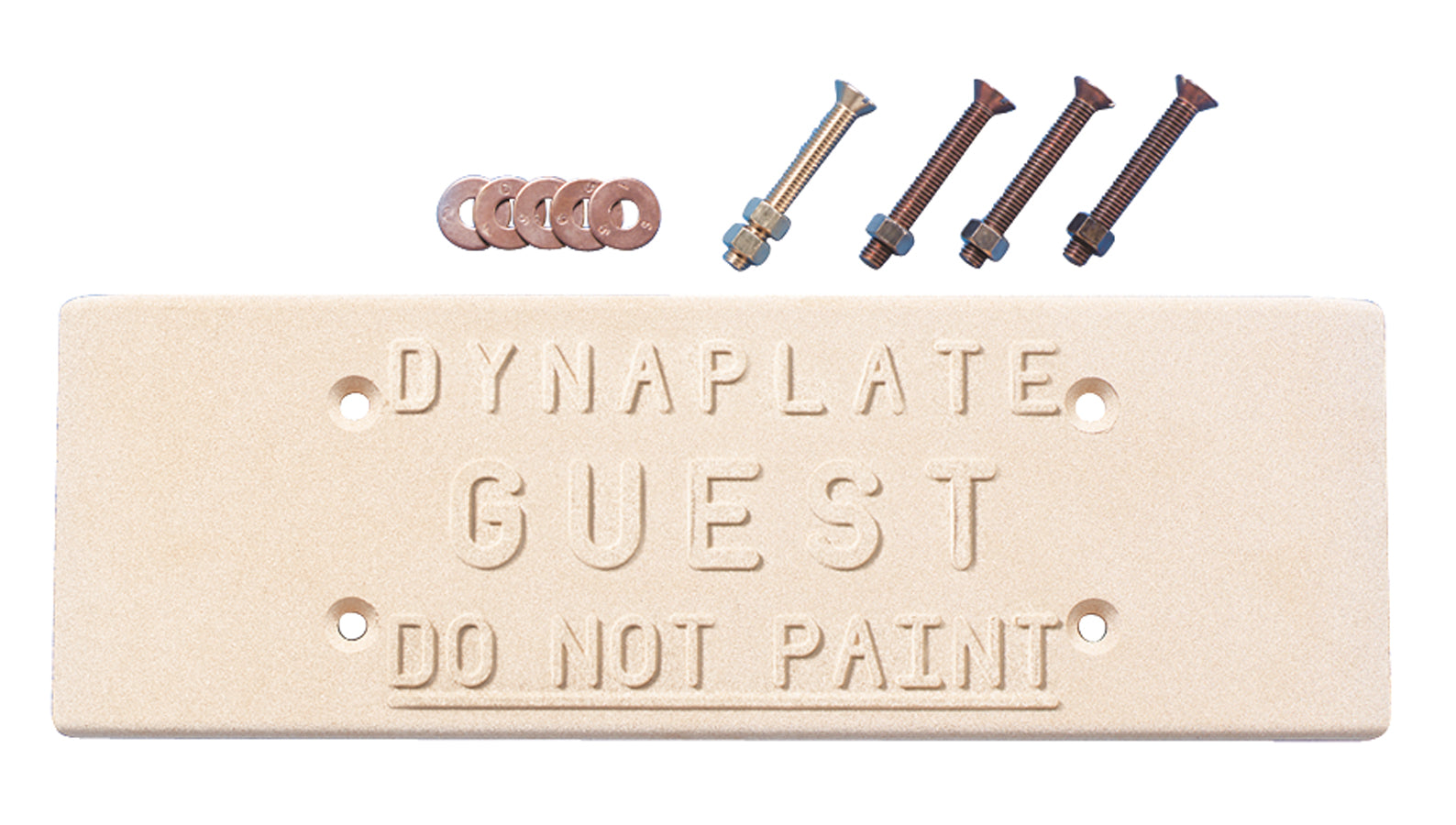

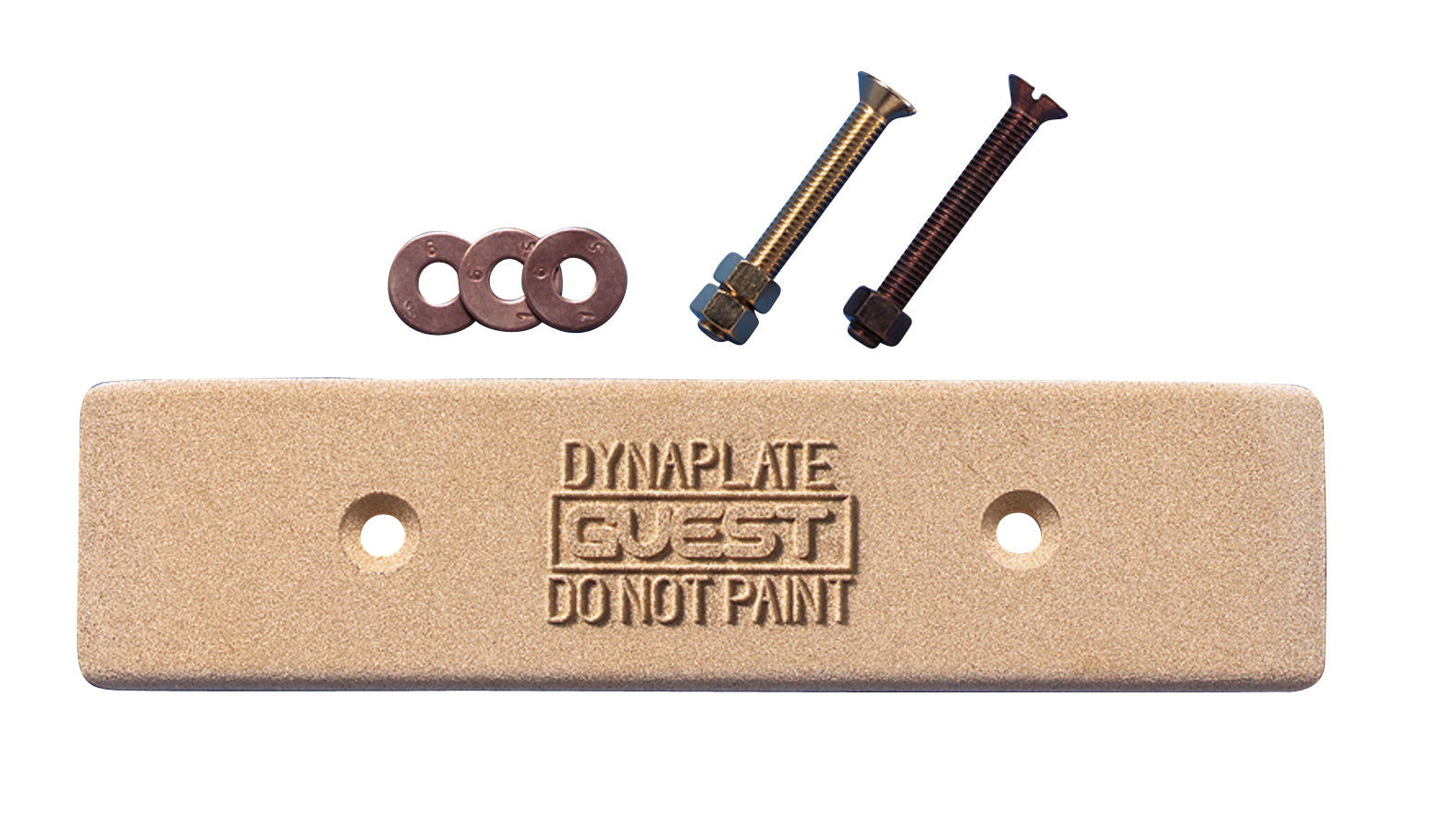

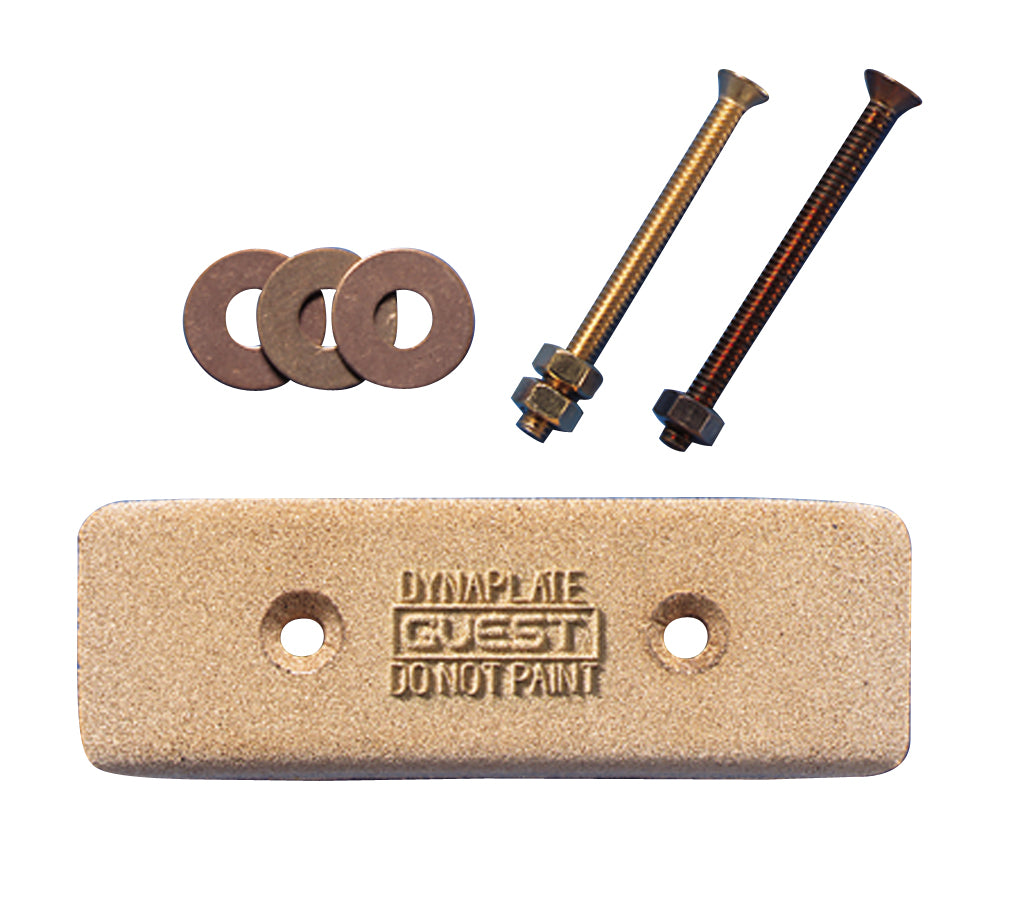

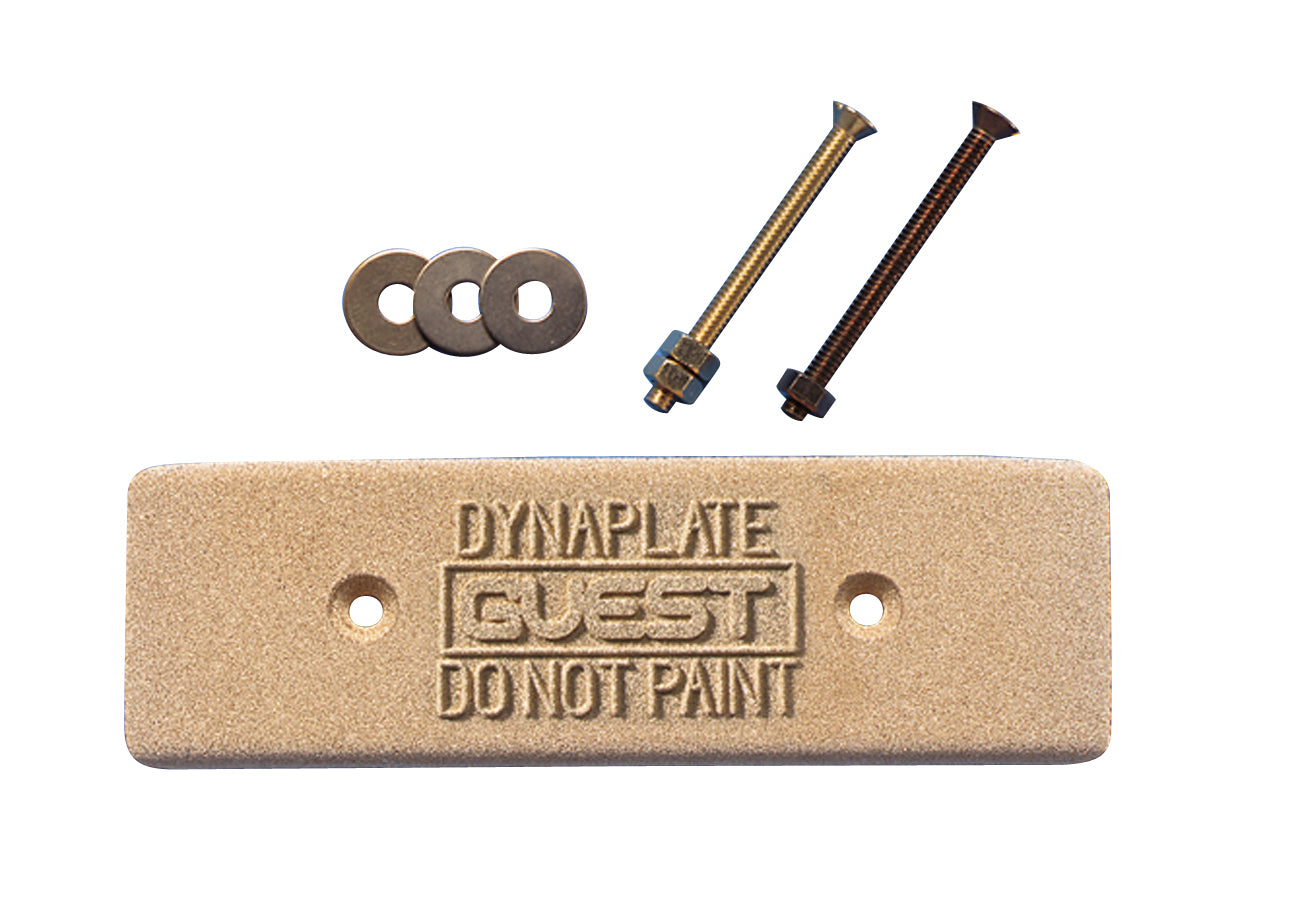

Marinco Ground plate (for bonding and grounding) Dynaplates
Marinco Ground plate (for bonding and grounding) Dynaplates
DISCRIPTION
DISCRIPTION
Description
- Improves performance of electronics and reduces RF interference
- Offers the best path for hull bonding without long runs of copper foil
- Provides a direct, low resistance path for improved lightning protection
- Deters electrolysis and galvanic corrosion
- Sintered porous bronze sphere construction for maximum conductivity in a compact size
- Low drag, non-fouling shape
- Easy to clean with wire brush
- Conforms to ABYC standards
- Mounting hardware included
- Gold plated mounting bolt
- Bronze mounting nuts
- Copper washers
🔹 Standard Dynaplate (Part #4006)
|
Specification |
Detail |
|
Use |
Bonding and grounding |
|
Dimensions |
6" x 2" x 0.5" (152 x 51 x 13 mm) |
|
Mounting Hole Distance |
2.5" center to center |
|
Weight |
1.4 lbs / 0.6 kg |
🔹 Large Dynaplate (Part #4008)
|
Specification |
Detail |
|
Use |
Bonding, grounding, and LORAN use |
|
Dimensions |
8" x 2.5" x 0.5" (203 x 64 x 13 mm) |
|
Mounting Hole Distance |
4" center to center |
|
Weight |
2.1 lbs / 1 kg |
🔹 Giant Dynaplate (Part #4012)
|
Specification |
Detail |
|
Use |
Bonding, grounding, and LORAN use |
|
Dimensions |
12" x 3" x 0.5" (305 x 76 x 13 mm) |
|
Mounting Hole Distance |
6" center to center |
|
Weight |
3.7 lbs / 1.7 kg |
🔹 Super Dynaplate (Part #4018)
|
Specification |
Detail |
|
Use |
SSB radio, bonding, grounding |
|
Dimensions |
18" x 6" x 0.5" (457 x 152 x 13 mm) |
|
Mounting Hole Distance |
9.875" center to center; 3" top to bottom |
|
Weight |
11.1 lbs / 5 kg |
