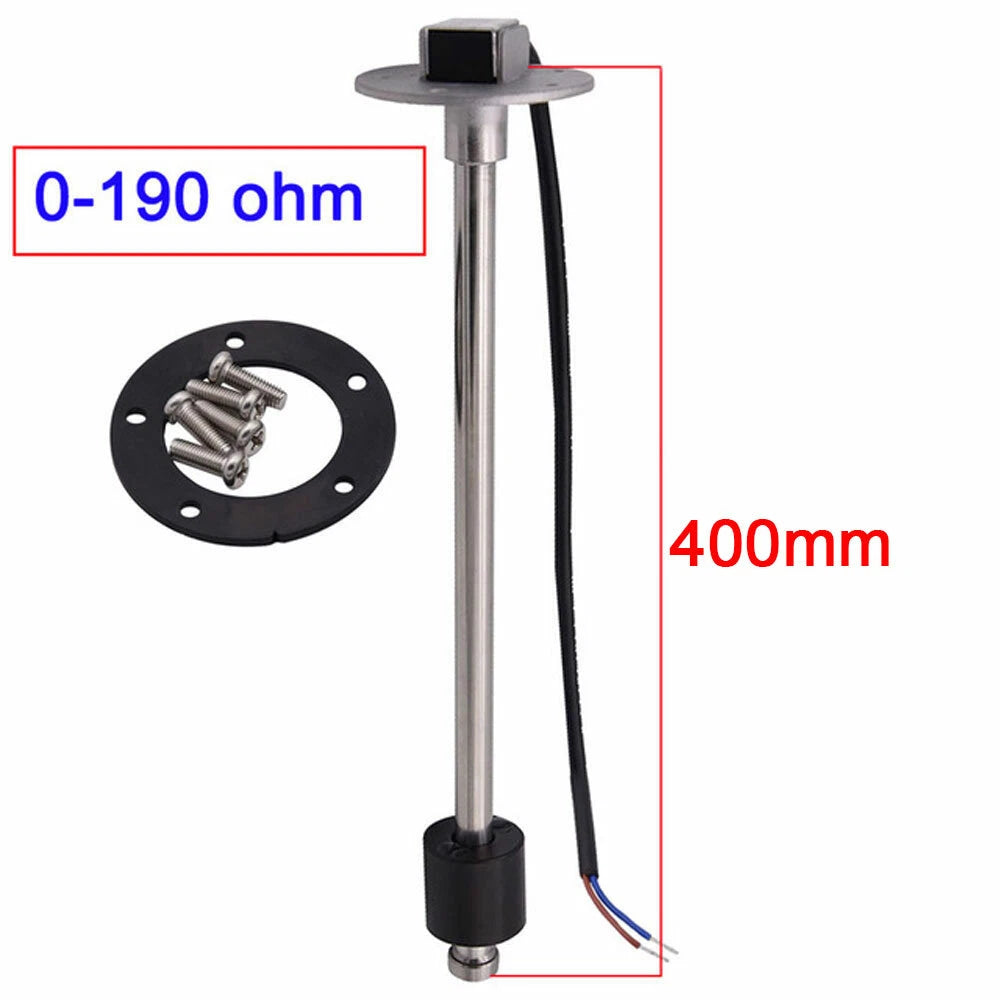

Marine Boat Fuel Water Tank Level Sensor 0-190ohms/240-33ohms
Marine Boat Fuel Water Tank Level Sensor 0-190ohms/240-33ohms
DISCRIPTION
DISCRIPTION
Description:
This Fuel/Water Level Sensor is a durable and accurate solution for monitoring fluid levels in fuel or water tanks. Operating on a 240–33 ohm output signal, it’s fully compatible with standard American fuel gauges and supports a wide range of vehicle types including motorcycles, passenger vehicles, and heavy-duty/commercial vehicles.
Crafted from stainless steel, this sensor is corrosion-resistant and ideal for marine, automotive, and industrial environments. Its vertical sensing design eliminates the need for a float arm, ensuring long-term reliability and easier installation.
Key Features:
-

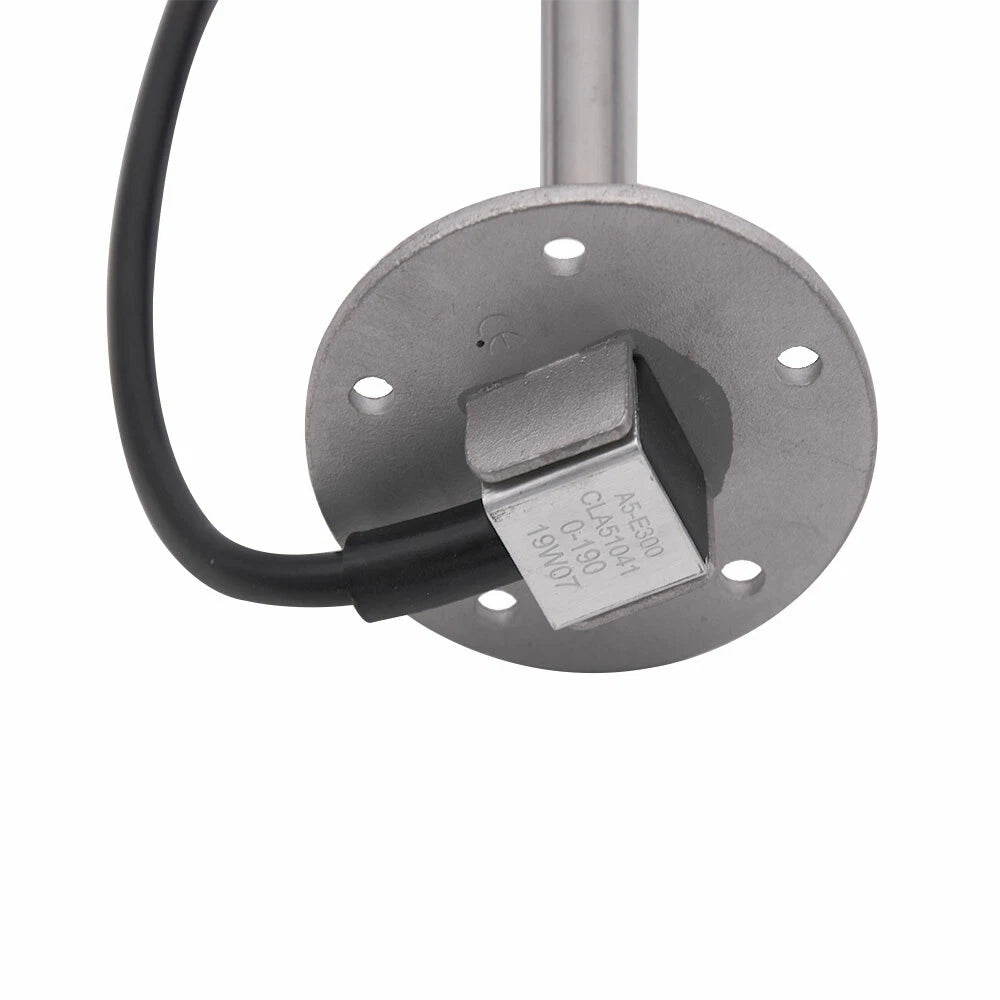

Type: Vertical Fuel/Water Level Sensor
-
Material: Stainless Steel
-
Output Signal: 240–33 Ohms (Standard American Range)
-

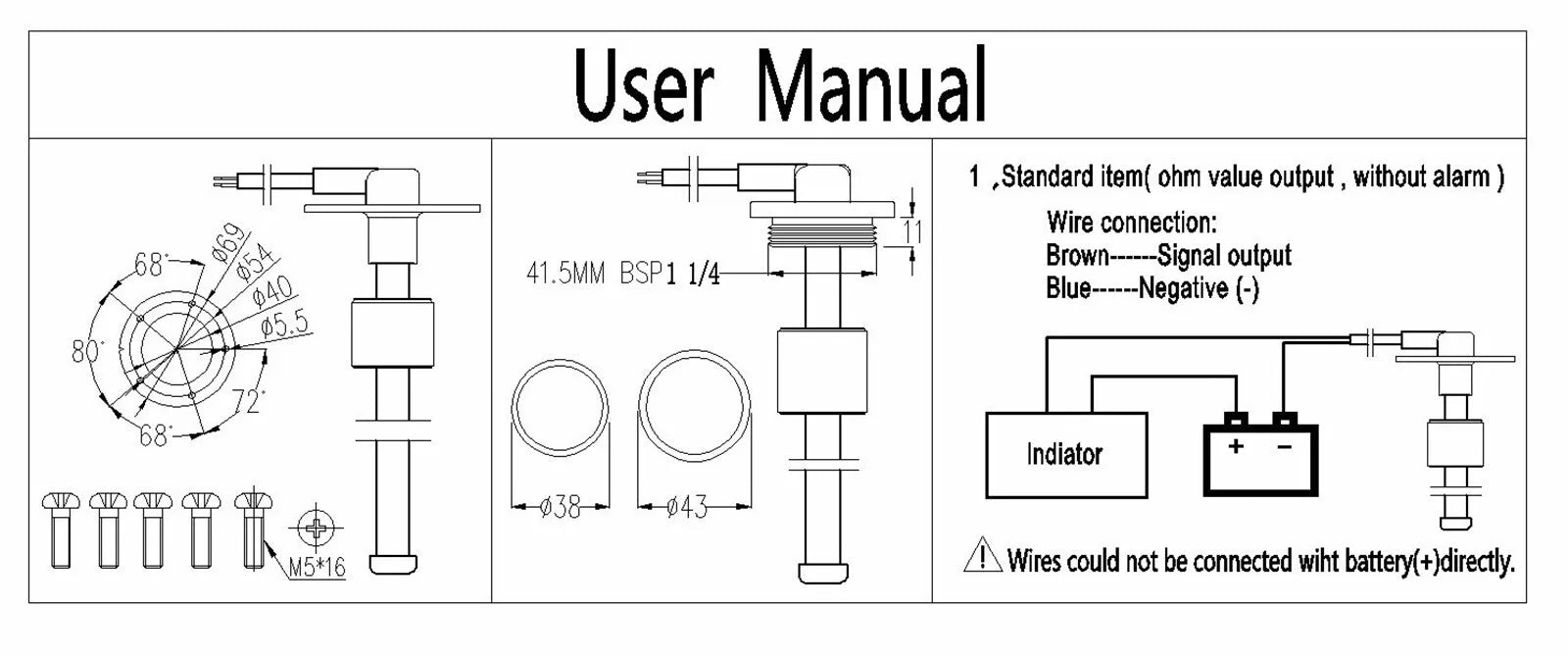

Mounting: SAE 5-hole pattern with 2.125" bolt circle
-

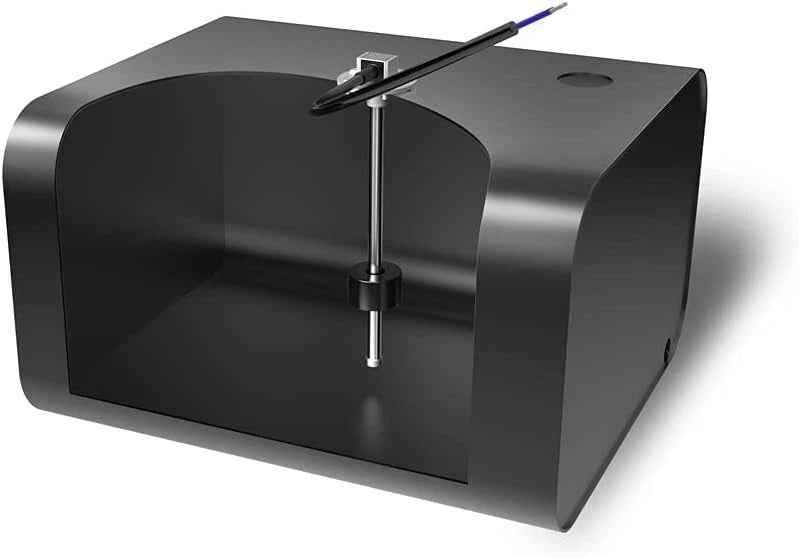

Operation: Internal vertical sensing (no float arm)
-

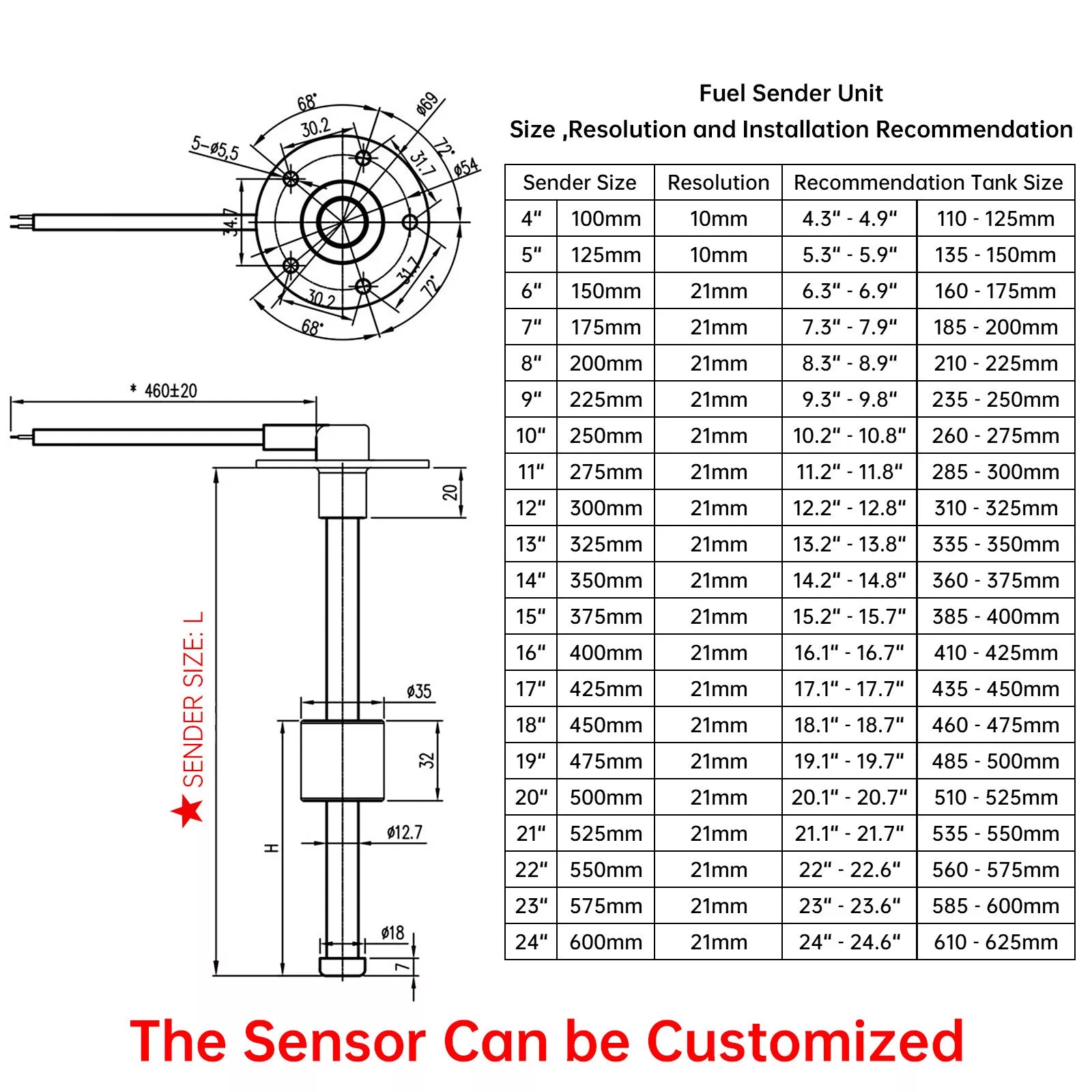

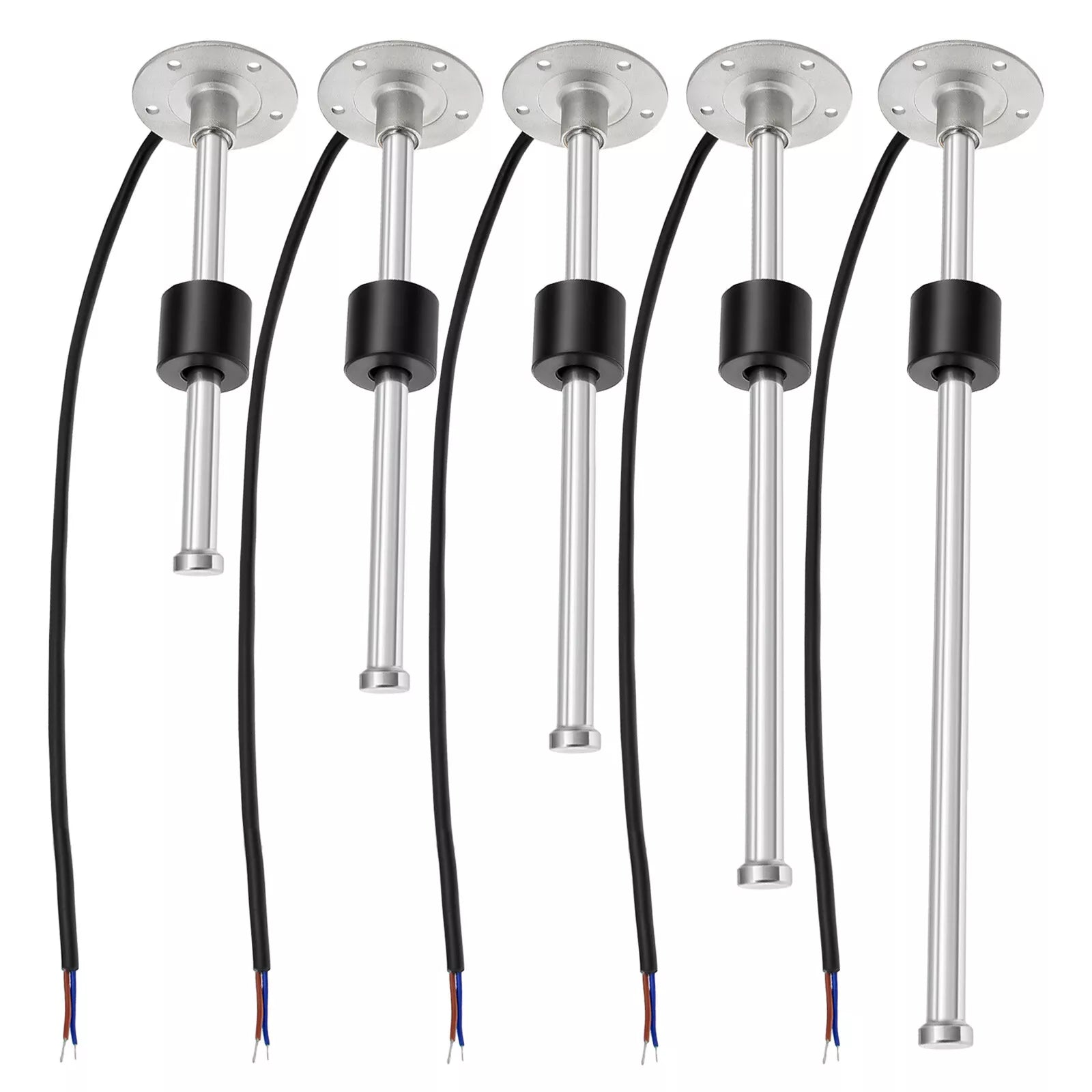

Sizes Available: From 7" to 24"
-
Condition: New
Special Features:
-
Compatible with both fuel and water tanks
-

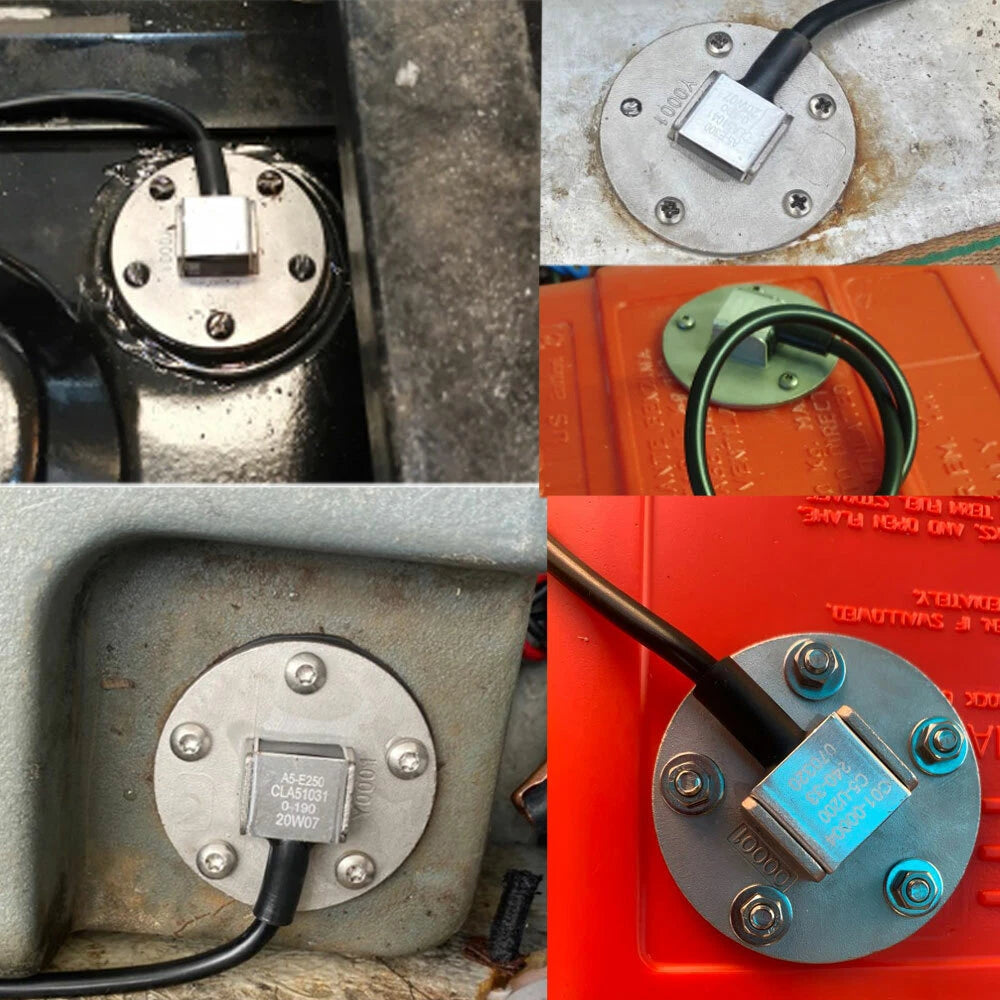

Easy to install using standard SAE mounting
-
Made for long-lasting use in harsh or corrosive environments
-
Stable and accurate readings with no moving float arm
-
Ideal for automotive, marine, and industrial applications
Item Specifics:
-
Material Type: Stainless Steel
-
Fuel Sensor Material: Stainless Steel
-
Standard: 240–33 Ohm Output
-
Mounting Cutout: 2.125" bolt circle (SAE 5-hole pattern)
