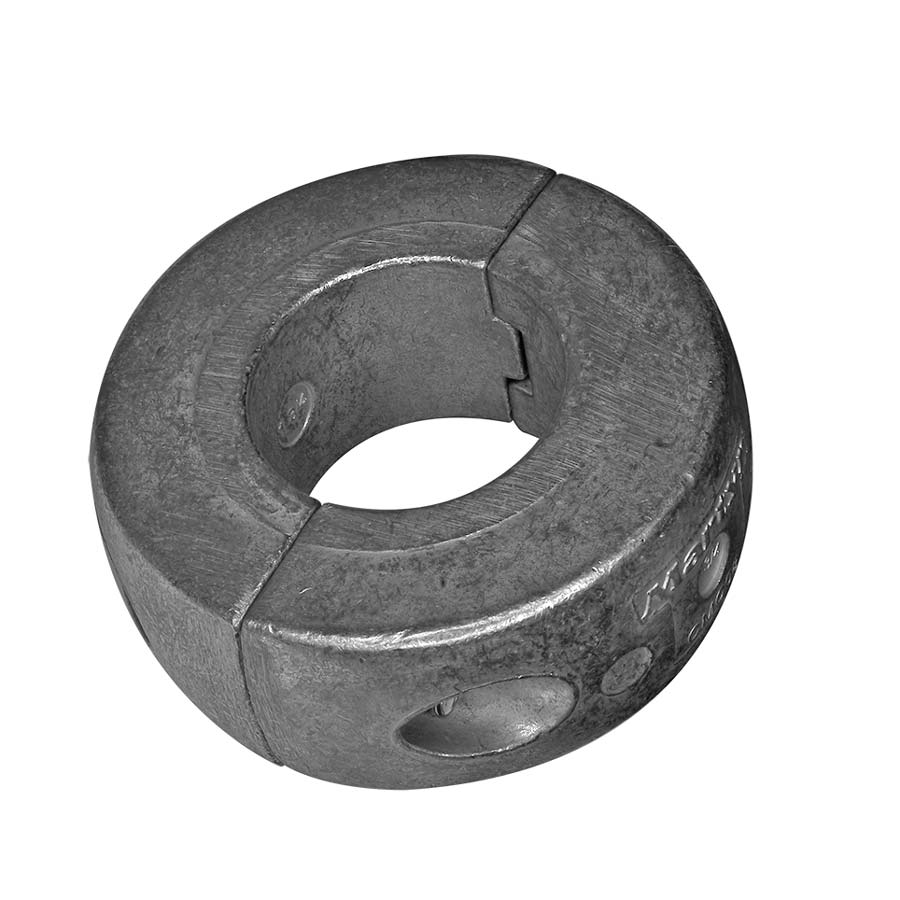

MARTYR Limited Clearance Shaft Ring Anodes
Product Description:
MARTYR Limited Clearance Shaft Ring Anodes are specifically designed for applications with tight space constraints where standard anodes may not fit. These streamlined ring anodes feature interlocking halves for secure installation and 100% circular shaft contact, ensuring maximum surface protection against galvanic corrosion.
Built with extra alloy reinforcement around the fasteners and equipped with bolt-retaining washers, these anodes provide a secure hold and easy underwater installation, making them ideal for both commercial and recreational vessels.
Key Features:
- Ring-style zinc anode for shaft protection in confined areas
- Full shaft contact (100% circular radius) for even corrosion protection
- Interlocking halves ensure secure fit and alignment
- Extra alloy around fasteners for durability and longer service life
- Bolt-retaining washers prevent detachment
- Designed for easy underwater installation

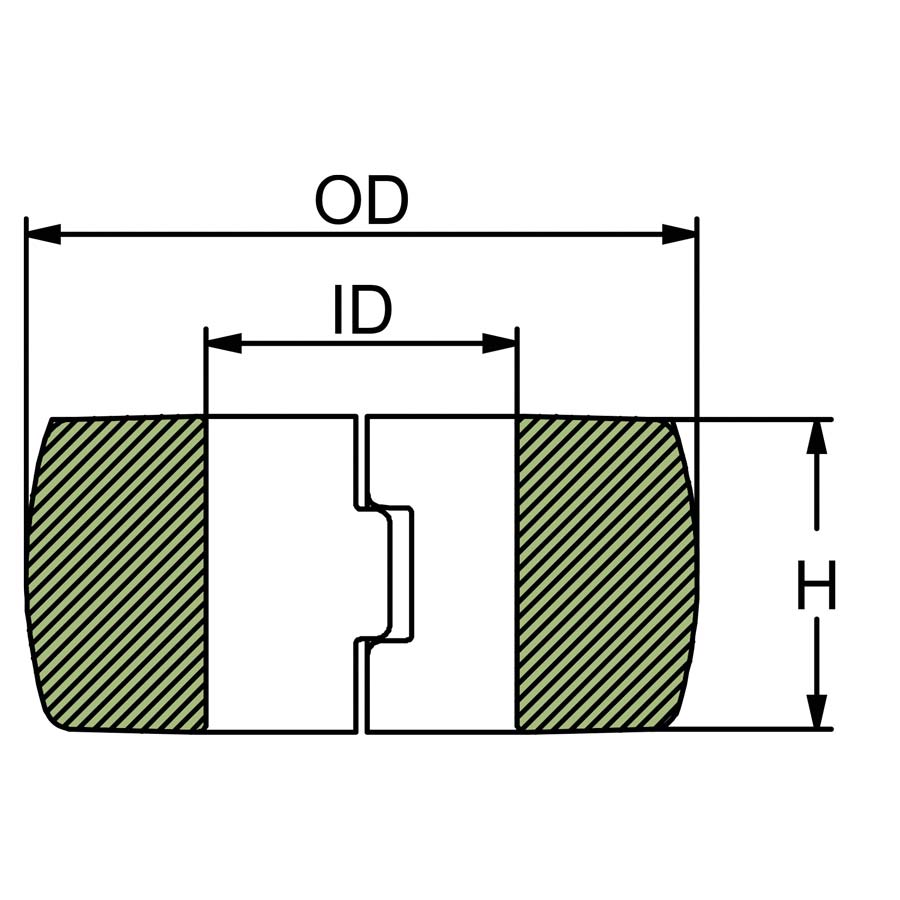

Metric Specifications (Selected Models):
|
Model No. |
Inside Diameter (mm) |
Outside Diameter (mm) |
Length (mm) |
Weight (kg) |
|
CMC50 |
50 |
89 |
35 |
1.22 |
|
CMC60 |
60 |
120 |
29 |
1.46 |
|
CMC70 |
70 |
130 |
29 |
1.66 |
|
CMC75 |
75 |
135 |
29 |
1.74 |
|
CMC80 |
80 |
140 |
29 |
1.81 |
|
CMC90 |
90 |
170 |
40 |
4.00 |
These MARTYR CMC Series Shaft Ring Anodes are trusted for their compact design, secure mounting, and long-lasting protection in even the most demanding marine environments.
