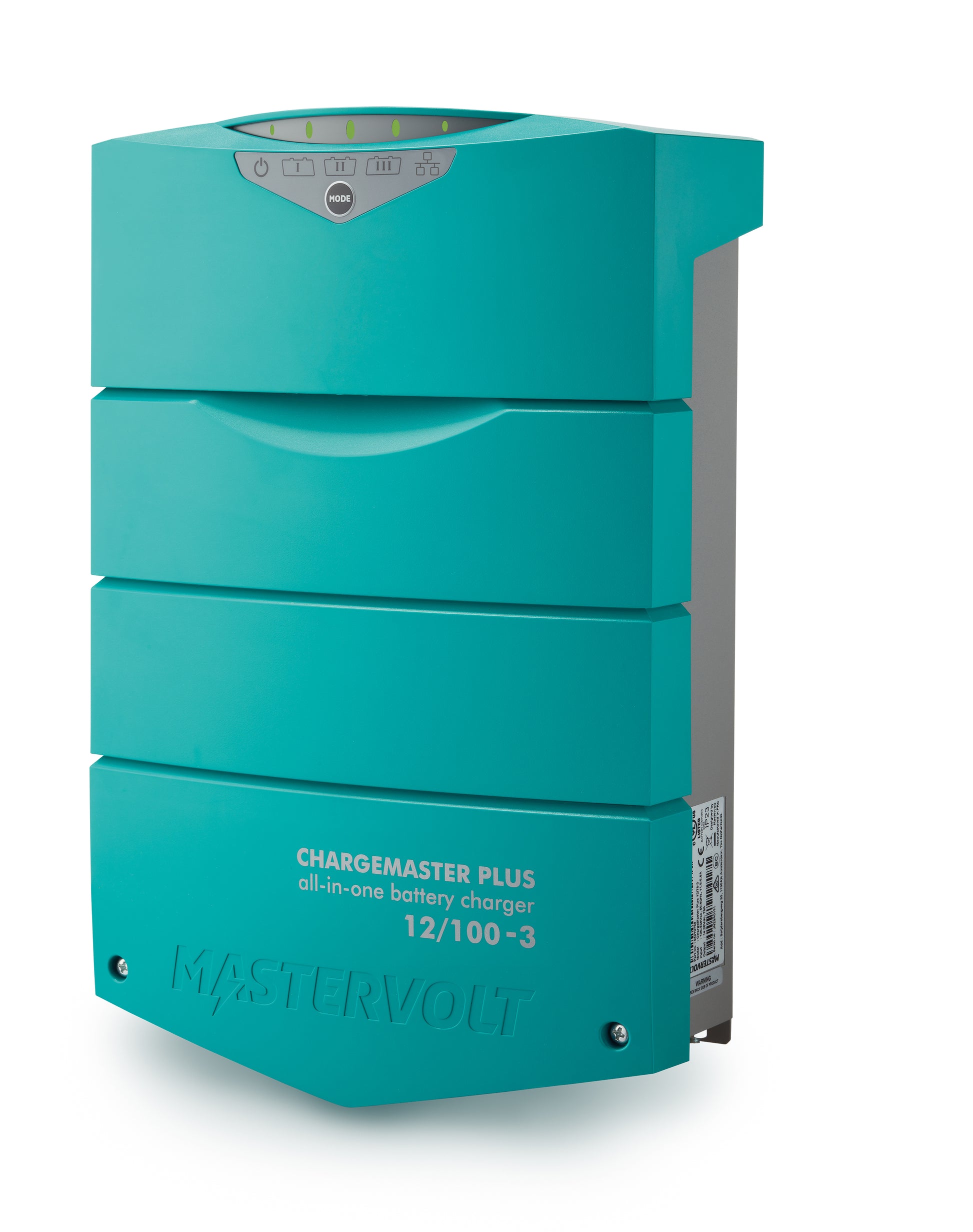

MASTERVOLT Charger ChargeMaster plus 12/100-3 CZone
MASTERVOLT Charger ChargeMaster plus 12/100-3 CZone
DISCRIPTION
DISCRIPTION
📡 Communication & Monitoring
|
Feature |
Details |
|
Communication Interfaces |
MasterBus, CZone, NMEA |
⚙️ General Specifications
|
Feature |
Details |
|
Nominal Output Voltage |
12 V |
|
Max. Output Current (Primary) |
100 A |
|
Smart In-/Output Voltage |
12 V |
|
Smart In-/Output Current |
5–40 A (adjustable) |
|
Smart In-/Output Input Current |
Max. 40 A |
|
Total Charge Current |
100 A at 14.4 V |
|
Max. AC Current (230 V / 120 V) |
8.5 A / 17 A |
|
Number of Battery Outlets |
3 (max.) |
|
Battery Bank Size |
400–1000 Ah |
|
Nominal Input Voltage |
120/230 V (80–275 V), 50/60 Hz |
|

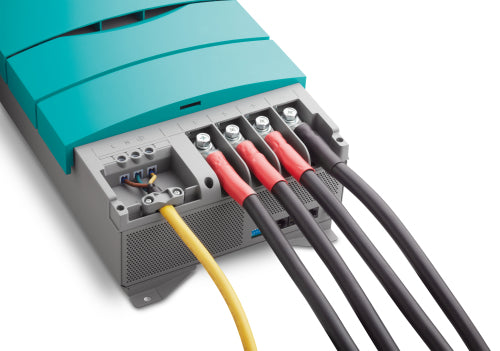

AC Connection |
Screw terminals, suitable up to 6 mm² |
|
Power Supply Mode |
Yes |
|
Galvanic Isolation |
Yes |
|
Display / Read-out |
LED display |
|
Dimensions (HxWxD) |
384 x 250 x 127 mm (15.1 x 9.8 x 5.0 in) |
|
Weight |
5.9 kg (13.0 lb) |
|
Compliance |
CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RMRS, RRR |
🔧 Technical Specifications
|
Feature |
Details |
|
Charge Characteristic |
IUoUo, automatic / 3-step+ for Gel/AGM/Flooded/Lithium Ion + user-defined option |
|
Temperature Compensation |
-30 mV/°C / -17 mV/°F; temperature sensor included |
|
DC Voltage Compensation |
Automatic or via MasterShunt |
|
Power Consumption (DC Side) |
< 2 mA (MasterBus off) |
|
Current Control Function |
Yes, through MasterBus or CZone |
|
Power Factor Control |
> 0.98 |
|
Temperature Range (Ambient Temp.) |
-25 °C to 80 °C (derating < 0 °C and > 40 °C) |
|
Cooling |
Vario fan |
|
Protection Degree |
IP23, vertical mounting |
|
Protections |
Over-temperature, overload, short circuit, high/low battery voltage, ignition protection |
|
Charger Status Interface |
Yes, using a Multipurpose Contact Output (code 77030500) |
