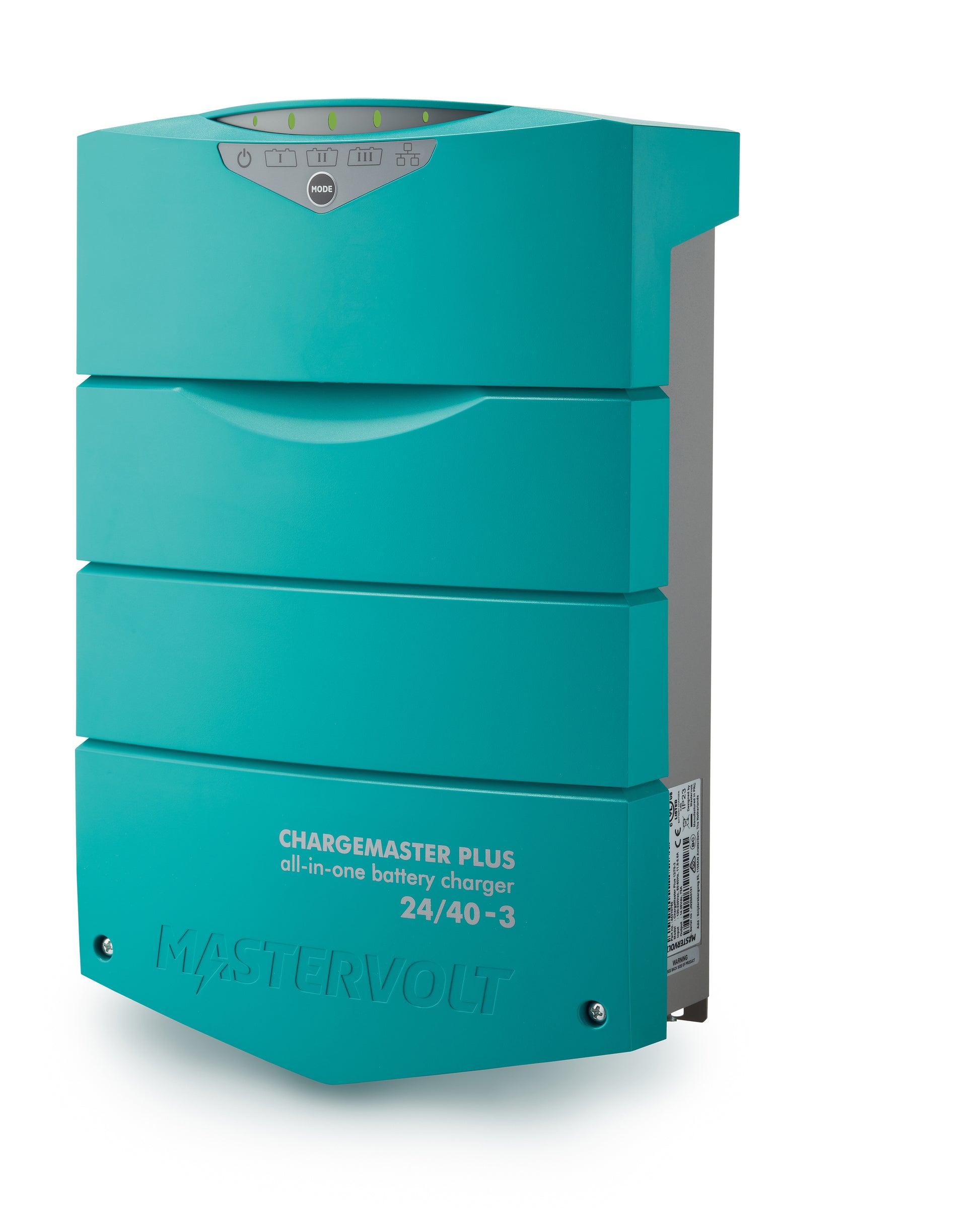

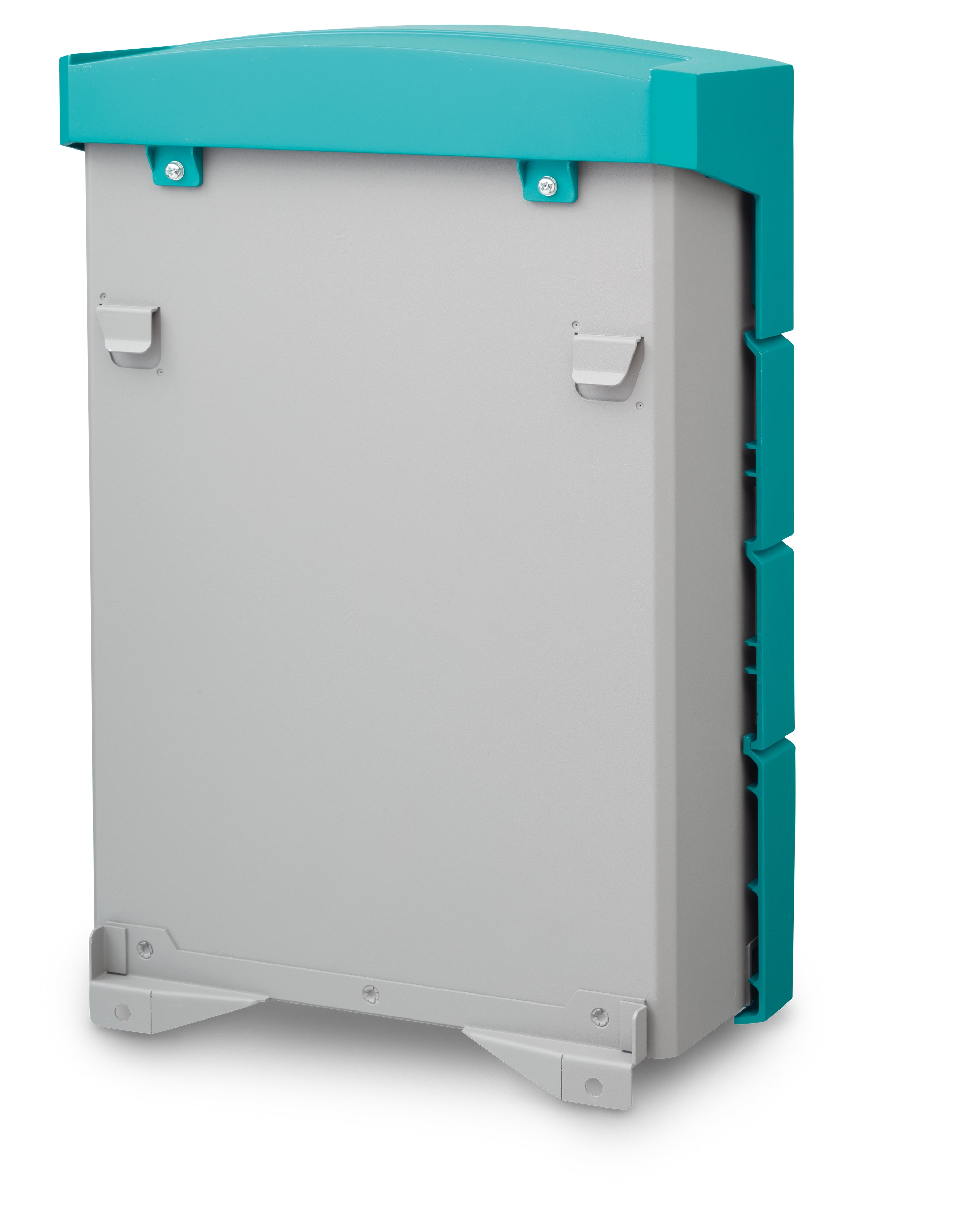

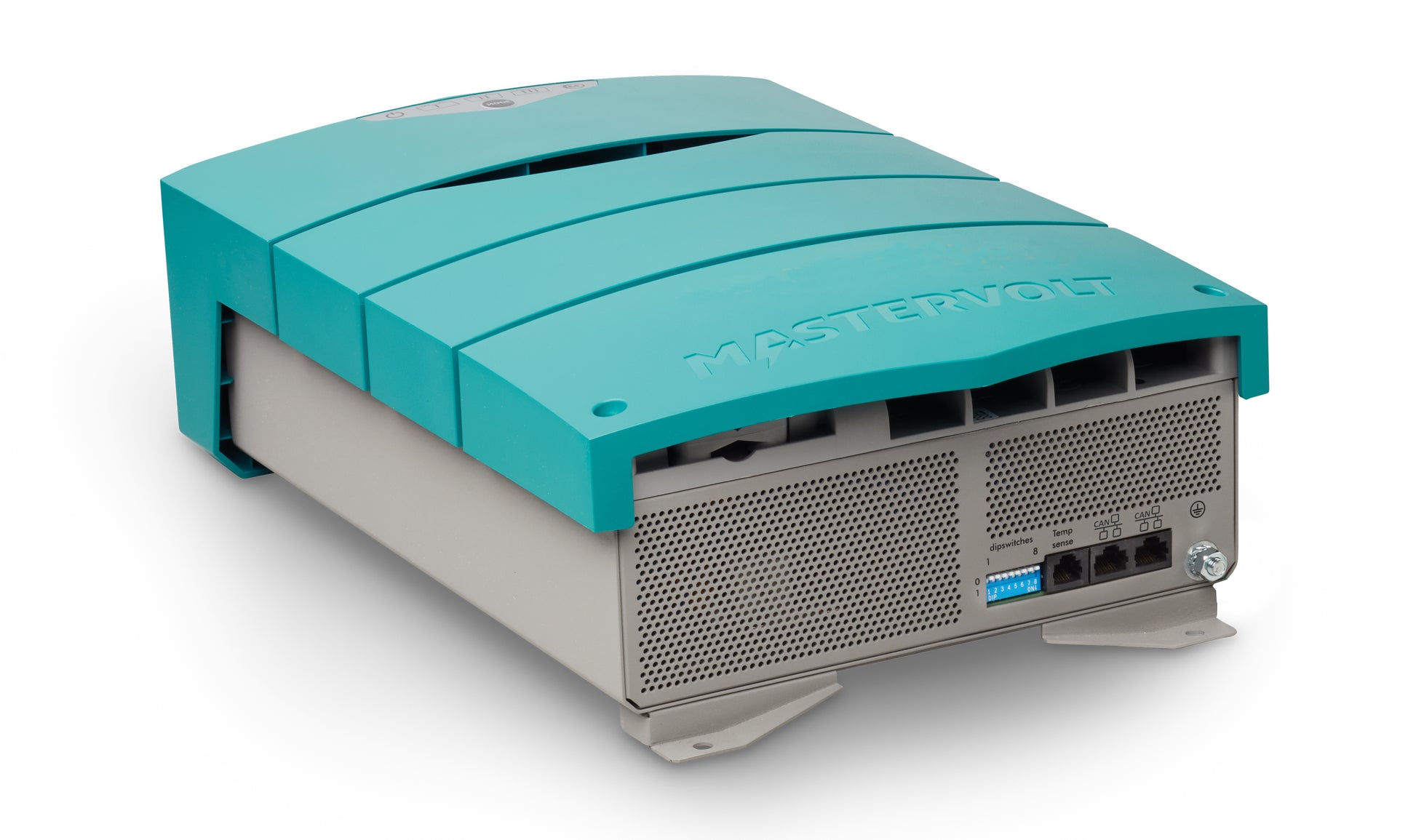

MASTERVOLT Charger ChargeMaster plus 24/40-3 CZone
MASTERVOLT Charger ChargeMaster plus 24/40-3 CZone
DISCRIPTION
DISCRIPTION
📡 COMMUNICATION & MONITORING
| Feature | Details |
|---|---|
| Interfaces | MasterBus, CZone, NMEA |
⚙️ GENERAL SPECIFICATIONS
| Feature | Details |
|---|---|
| Nominal Output Voltage | 24 V |
| Max Output Current (Primary) | 40 A |
| Smart In-/Output Voltage | 12 or 24 V |
| Smart In-/Output Current | 5–10 A @ 12 V; 5–20 A @ 24 V (adjustable) |
| Smart In-/Output Input Current | Max 20 A @ 24 V |
| Total Charge Current | 40 A @ 28.8 V |
| Max AC Current (230 V / 120 V) | 6.8 A / 13.5 A |
| Battery Outlets | Up to 3 |
| Battery Bank Size | 160–400 Ah |
| Nominal Input Voltage | 120/230 V (80–275 V), 50/60 Hz |

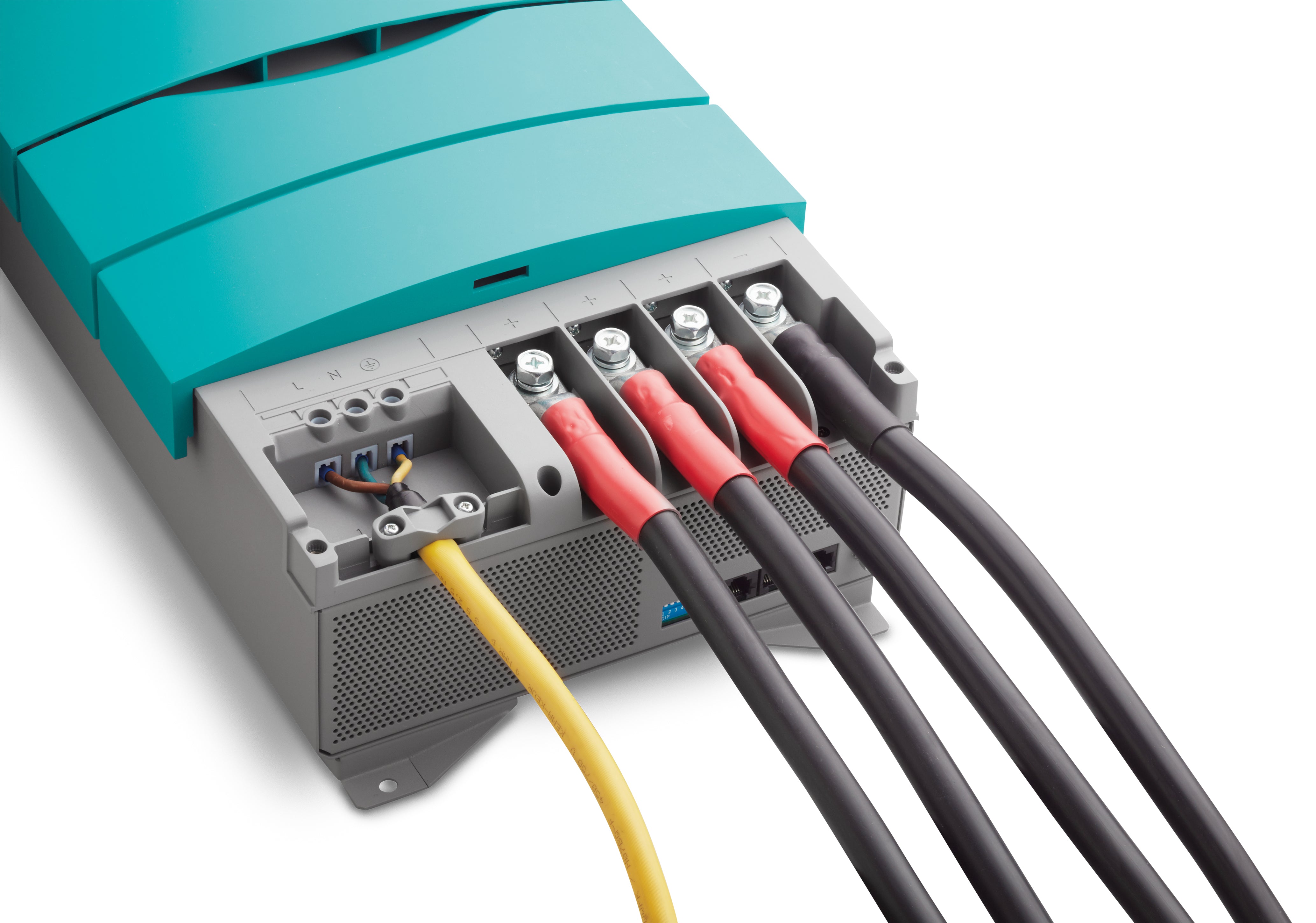

| AC Connection | Screw terminals (up to 6 mm²) |
| Power Supply Mode | Yes |
| Galvanic Isolation | Yes |
| Display | LED |
| Dimensions (HxWxD) | 384 x 250 x 127 mm (15.1 x 9.8 x 5.0 in) |
| Weight | 5.9 kg (13.0 lb) |
| Compliance | CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RMRS, RRR |
🔧 TECHNICAL SPECIFICATIONS
| Feature | Details |
|---|---|
| Charge Characteristic | IUoUo automatic / 3-step+ (Gel, AGM, Flooded, Lithium, user-defined) |
| Temperature Compensation | -60 mV/°C (-76 mV/°F), sensor included |
| DC Voltage Compensation | Automatic or via MasterShunt |
| Power Consumption (DC side) | < 2 mA (MasterBus off) |
| Current Control | Yes (via MasterBus or CZone) |
| Power Factor | > 0.98 |
| Operating Temperature Range | -25 °C to 80 °C (derating < 0 °C and > 40 °C) |
| Cooling | Variable speed fan |
| Protection Rating | IP23 (vertical mounting) |
| Protections | Over-temp, overload, short circuit, voltage, ignition protection |
| Alarm Contact | Yes (via Multipurpose Contact Output – Code 77030500) |
📄 DOWNLOAD
