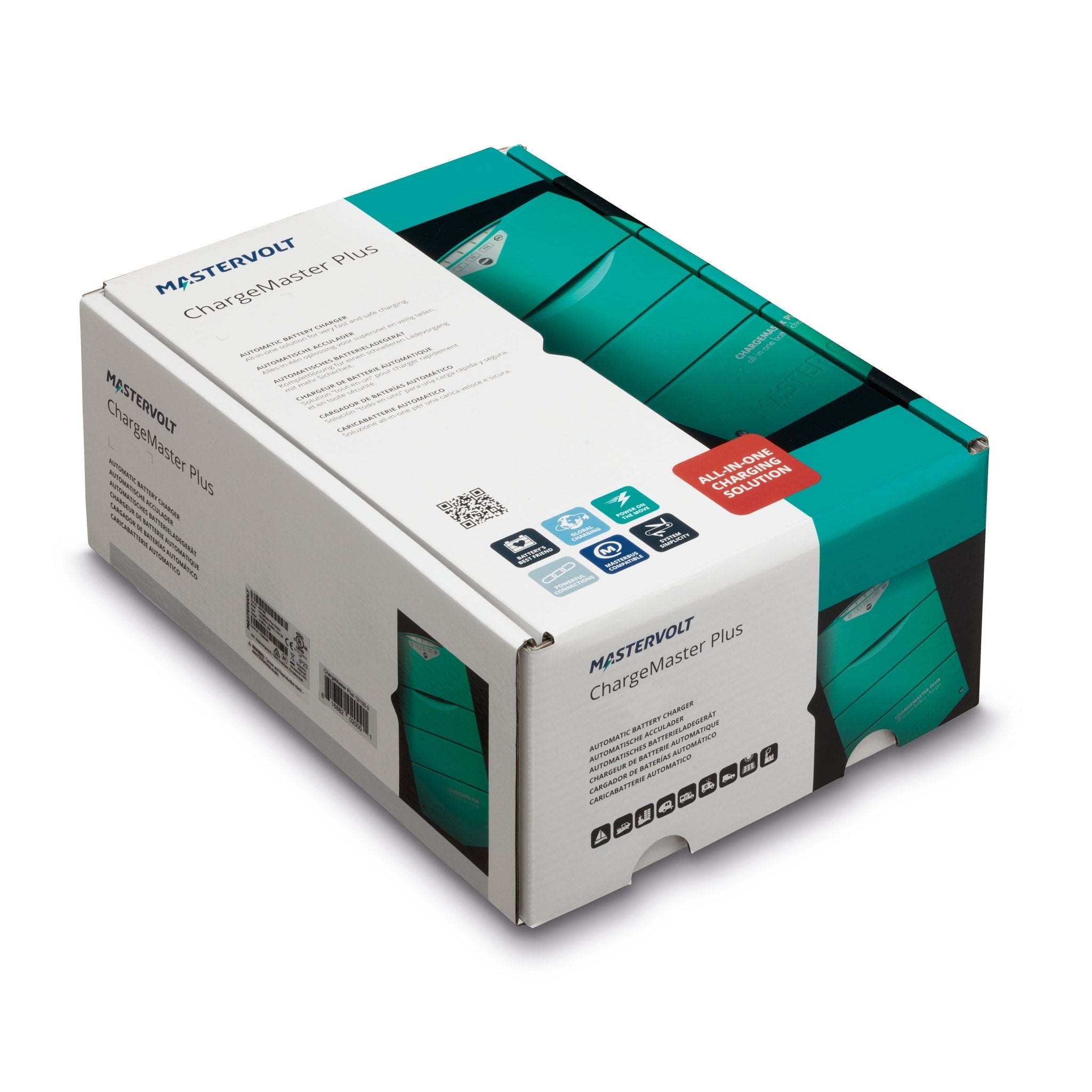

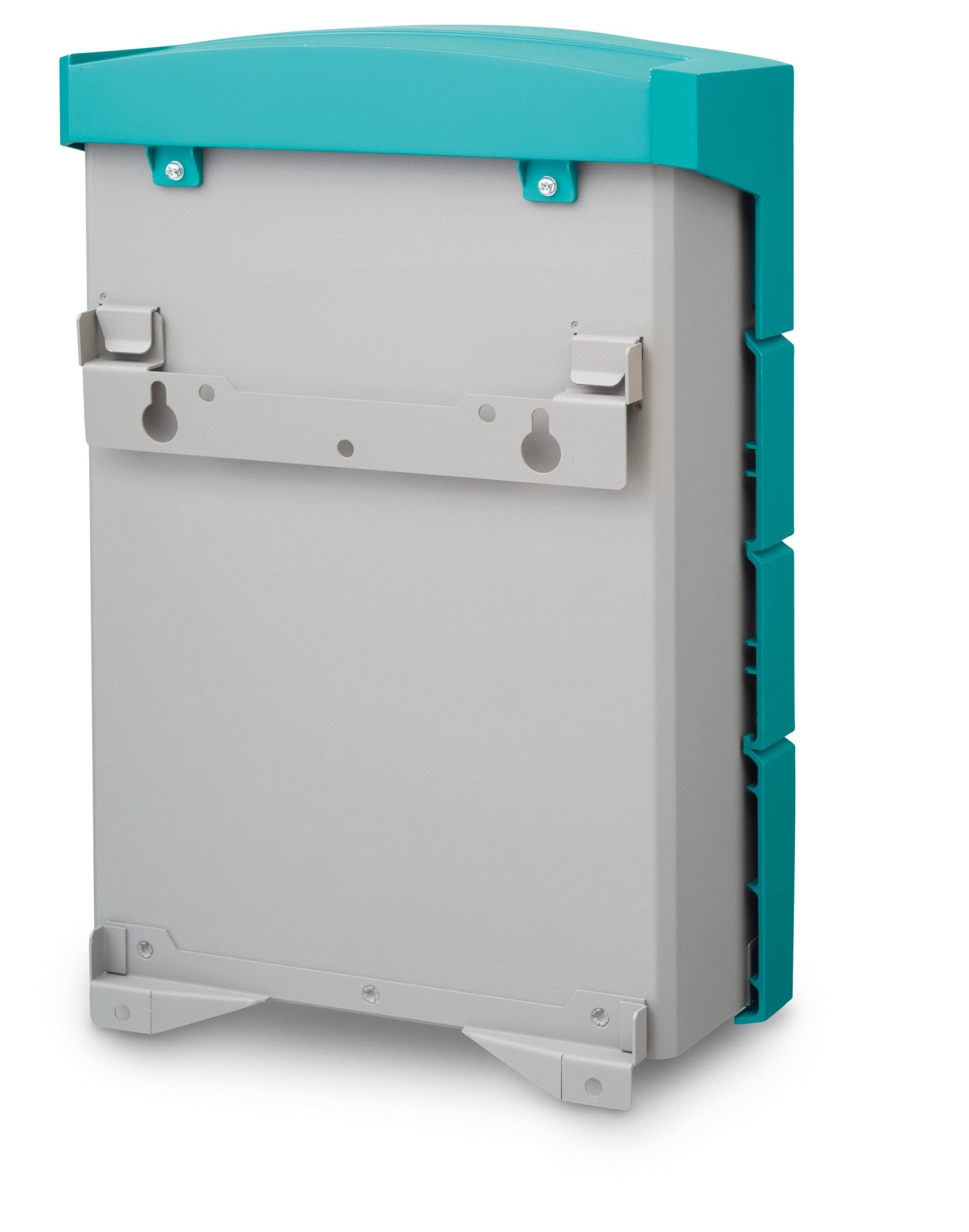

Mastervolt Charger ChargeMaster Plus 24/80-2 Czone
Mastervolt Charger ChargeMaster Plus 24/80-2 Czone
DISCRIPTION
DISCRIPTION
📡 Communication & Monitoring
|
Feature |
Details |
|
Communication Interfaces |
MasterBus, CZone, NMEA 2000 |
⚙️ General Specifications
|
Feature |
Details |
|
Nominal Output Voltage |
24 V |
|
Secondary Output Voltage |
14.25 / 28.5 V (12/24 V) |
|
Max. Output Current (Primary) |
80 A |
|
Max. Output Current (Secondary) |
5–15 A at 12 V / 5–20 A at 24 V (adjustable) |
|
Total Charge Current |
80 A at 28.8 V |
|
Max. AC Current (230 V / 120 V) |
11.75 A / 23 A |
|
Number of Battery Outlets |
2 (max.) |
|
Battery Bank Size |
280–700 Ah |
|
Nominal Input Voltage |
120/230 V (80–275 V), 50/60 Hz |
|
AC Connection |
Screw terminals, suitable up to 6 mm² |
|
Power Supply Mode |
Yes |
|
Galvanic Isolation |
Yes |
|
Display / Read-out |
LED |
|
Dimensions (HxWxD) |
384 x 250 x 127 mm (15.1 x 9.8 x 5.0 in) |
|
Weight |
6.3 kg (13.9 lb) |
|
Compliance |
CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RRR |
🔧 Technical Specifications
|
Feature |
Details |
|
Charge Characteristic |
IUoUo, automatic / 3-step+ for Gel/AGM/Flooded/Lithium Ion + user-defined option |
|
Temperature Compensation |
-60 mV/°C / -76 mV/°F; temperature sensor included |
|
DC Voltage Compensation |
Automatic or via MasterShunt |
|
Power Consumption (DC Side) |
< 2 mA (MasterBus off) |
|
Current Control Function |
Yes, through MasterBus or CZone |
|
Power Factor Control |
Yes, > 0.98 |
|
Temperature Range (Ambient Temp.) |
-25 °C to 80 °C, derating > 40 °C |
|
Cooling |
Vario fan |
|
Protection Degree |
IP23, vertical mounting |
|
Protections |
Over-temperature, overload, short circuit, high/low voltage, ignition protection |
|
Charger Status Interface (Alarm Contact) |
Yes, using a Multipurpose Contact Output (code 77030500) |
