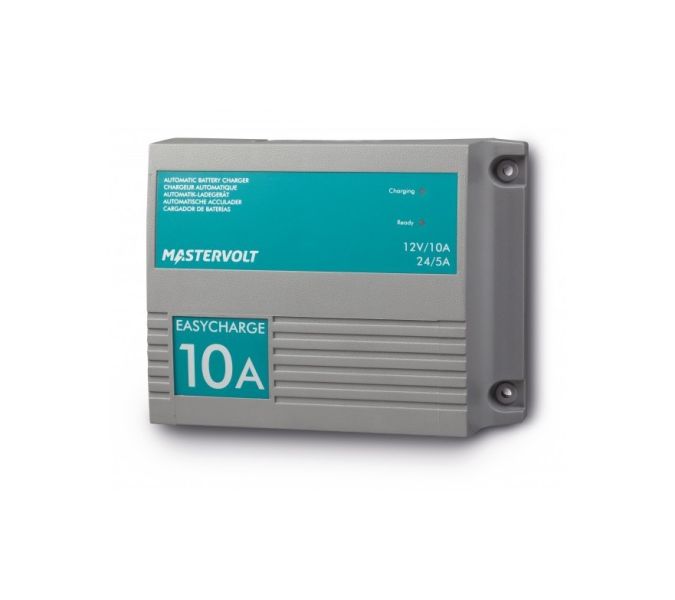

Mastervolt Charger EasyCharge 10A 12V / 5A 24V
Mastervolt Charger EasyCharge 10A 12V / 5A 24V
DISCRIPTION
DISCRIPTION
Device Specifications (12V/24V – 10A/5A Model)
General Specifications
|
Category |
Details |
|
Total Charge Current |
10 A at 12 V / 5 A at 24 V |
|
Recommended Battery Capacity (Charge, 50% DOD) |
Up to 120 Ah |
|
Nominal Input Voltage |
120/230 V (90–265 V), 50/60 Hz |
|
AC Connection |
1.2 m (4 ft) cable + Euro plug |
|
DC Connection |
Ring terminals |
|
Galvanic Isolation |
Yes |
|
Dimensions (HxWxD) |
127 x 178 x 51 mm / 5.0 x 7.0 x 2.0 in |
|
Weight |
2.8 kg / 6.2 lb |
|
Compliance |
CE, ABYC |
|
Optional |
Also available with UK plug, product code 43321002 |
Technical Specifications
|
Category |
Details |
|
Charge Characteristic |
IUoUo, automatic 3-step+ for Gel/AGM/flooded |
|
Temperature Range |
-20 °C to 50 °C |
|
Protection Degree |
IP68 |
|
Protections |
Spark free, short circuit, reverse polarity, over voltage, current limited, over temperature |
|
MasterBus Compatible |
No |
📥 Download
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Smarter Power. Safer Seas. Trusted Gear.
Protects Your System
Prevents starter battery drain by isolating house loads when the engine is off—ideal for dual battery setups.
Corrosion Protection
Blocks low-voltage DC currents that cause galvanic corrosion while maintaining full AC safety ground connection.
Clean Sine Wave Output
Provides a pure, clean sine wave to protect sensitive electronics and ensure optimal performance of onboard devices.
