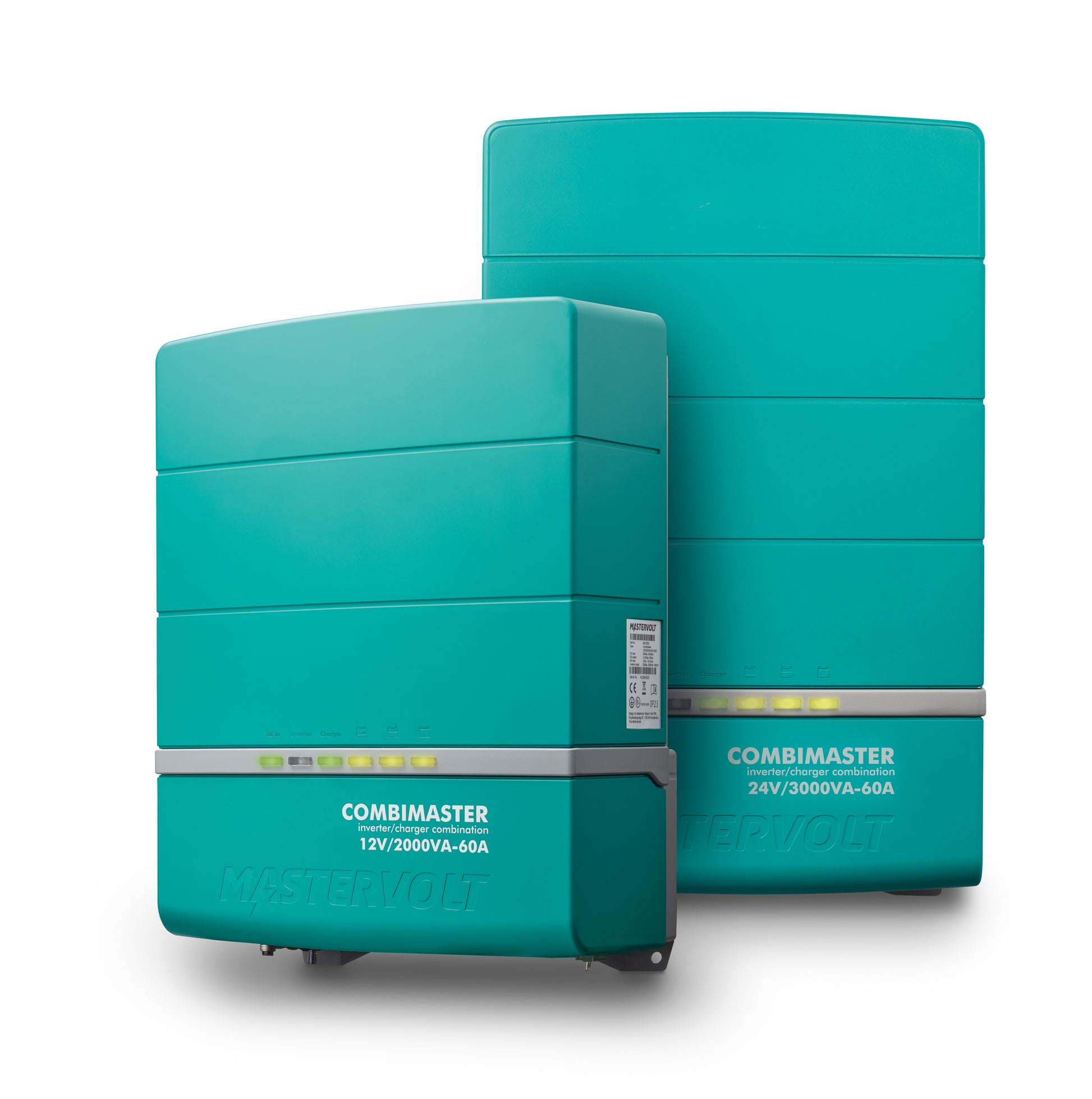

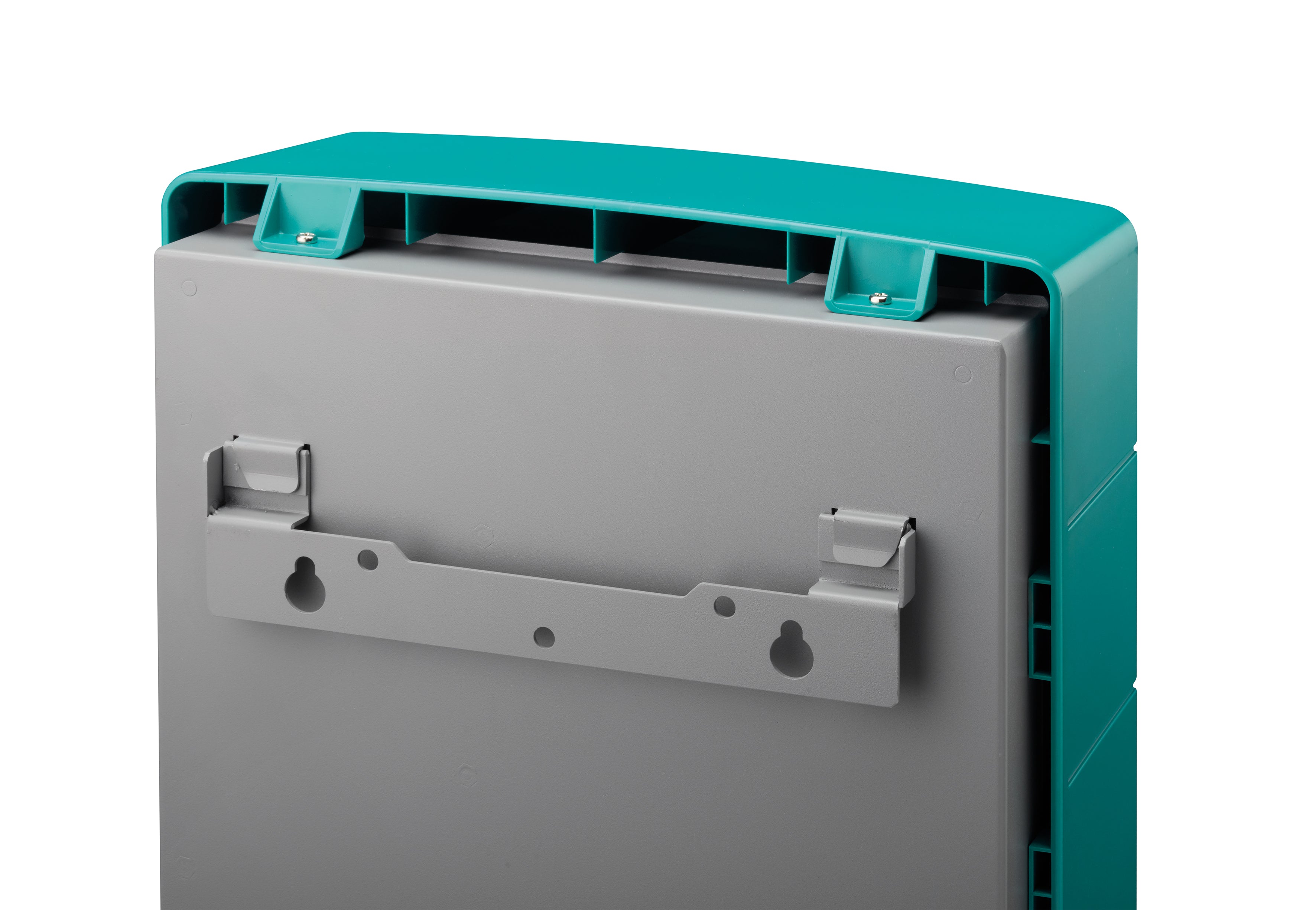

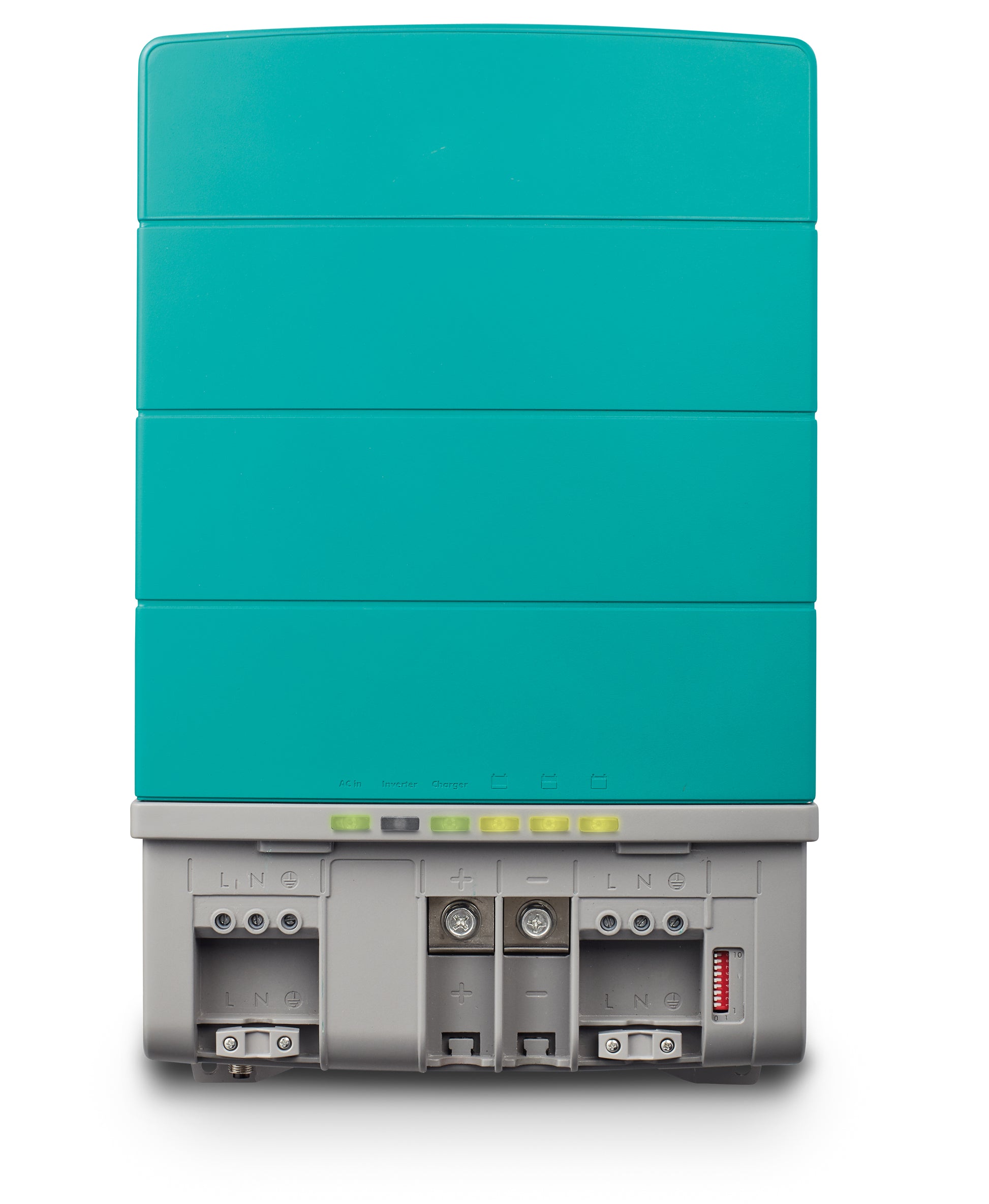

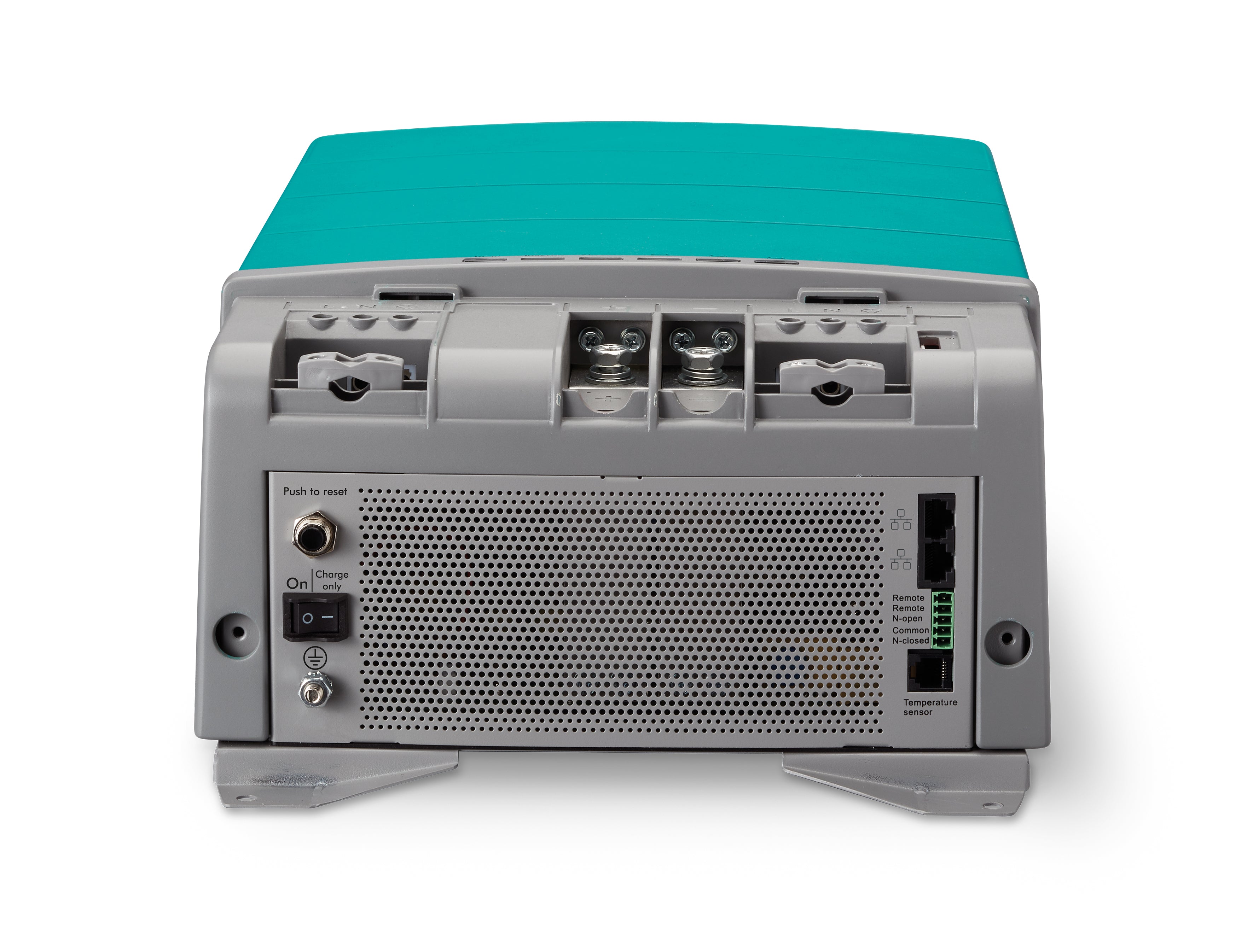

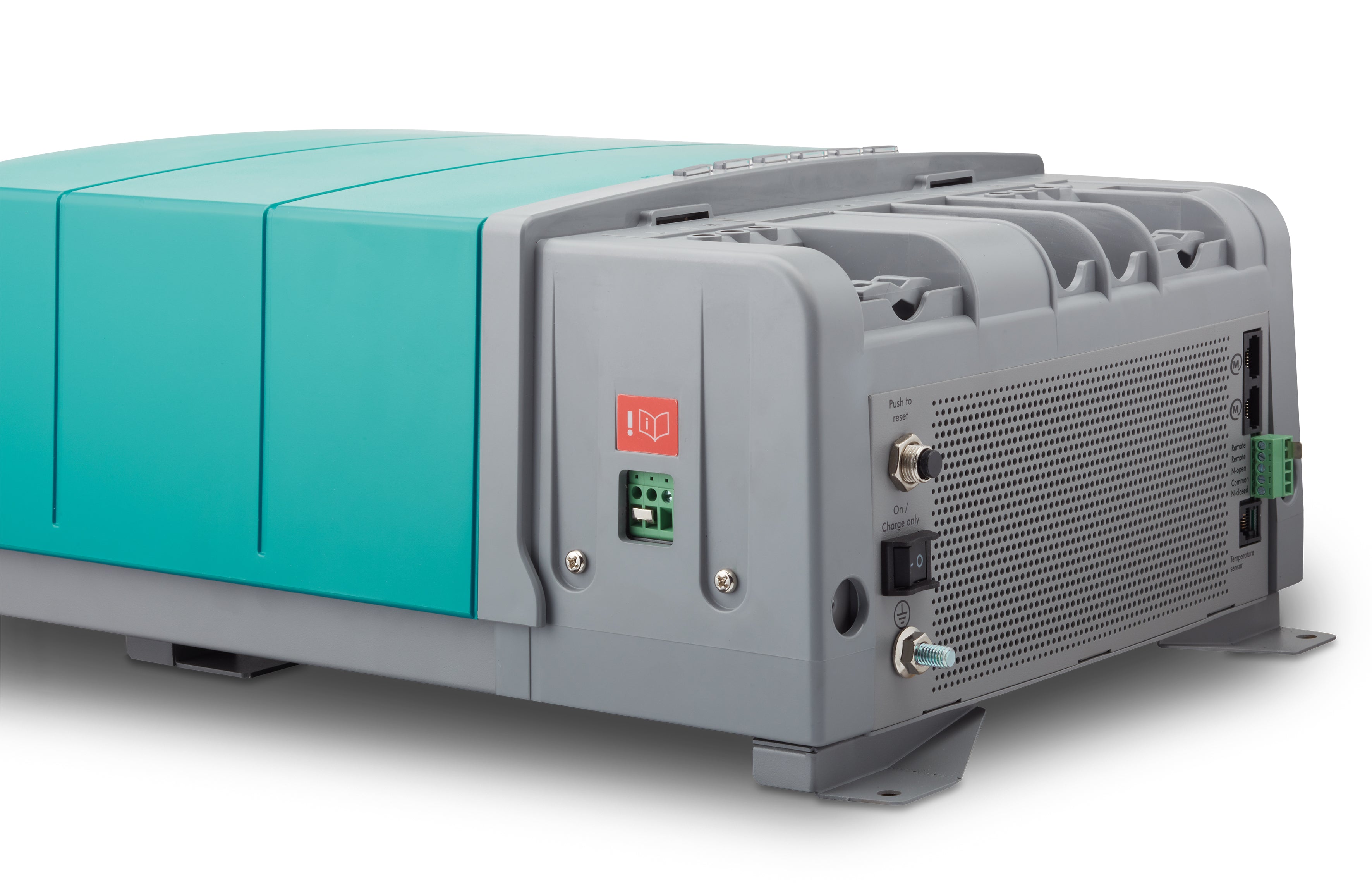

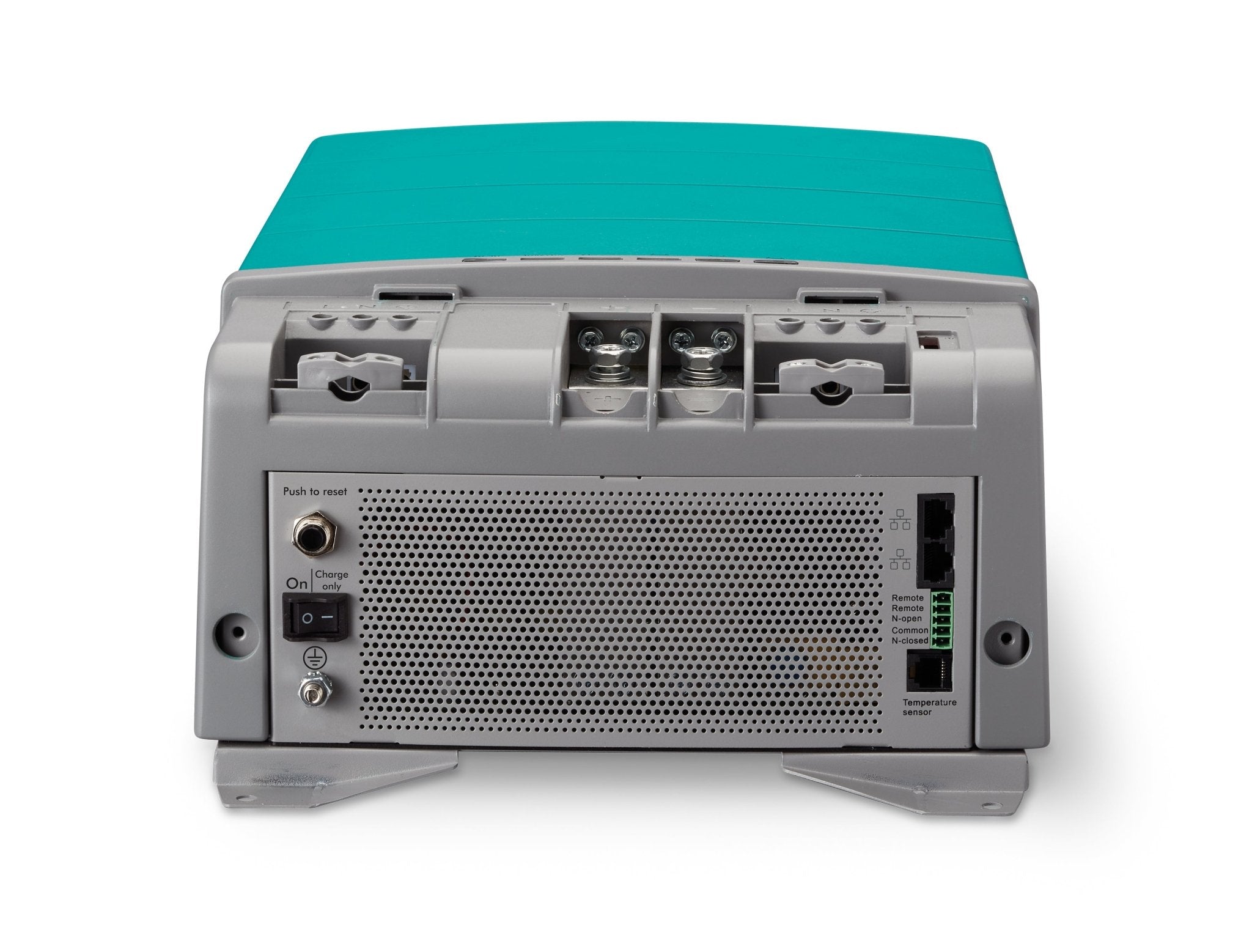

Mastervolt Combi master 24/3000-60 CZone 230V compatible inverter-charger combination
Mastervolt Combi master 24/3000-60 CZone 230V compatible inverter-charger combination
DISCRIPTION
DISCRIPTION
Device Specifications – Sine Wave Inverter / Charger (24V Model)
Sine Wave Inverter Specifications
|
Category |
Details |
|
Nominal DC Voltage |
24 V (20.4–32 V) |
|
Output Voltage |
230 V |
|
Output Frequency |
50/60 Hz (configurable) |
|
Output Waveform |
True sine |
|
Continuous Power @ 40 °C / 104 °F (cos φ 1) |
3000 VA / 2600 W |
|
Peak Power (30 sec) |
4500 VA / 3900 W |
|
Surge Power (5 sec) |
6000 VA / 5200 W |
|
Max. Efficiency |
93% |
|
Battery No-load Power Consumption |
30 W (on mode) / < 1 mA (off mode) |
|
Energy Saving Mode Consumption |
10 W |
|
Synchronise with Mains |
Yes |
Battery Charger Specifications
|
Category |
Details |
|
Input Voltage Range |
170–280 V |
|
Max. Input Current |
13 A (adjustable) |
|
Max. Charge Current @ 40 °C |
60 A at 28.5 V (configurable) |
|

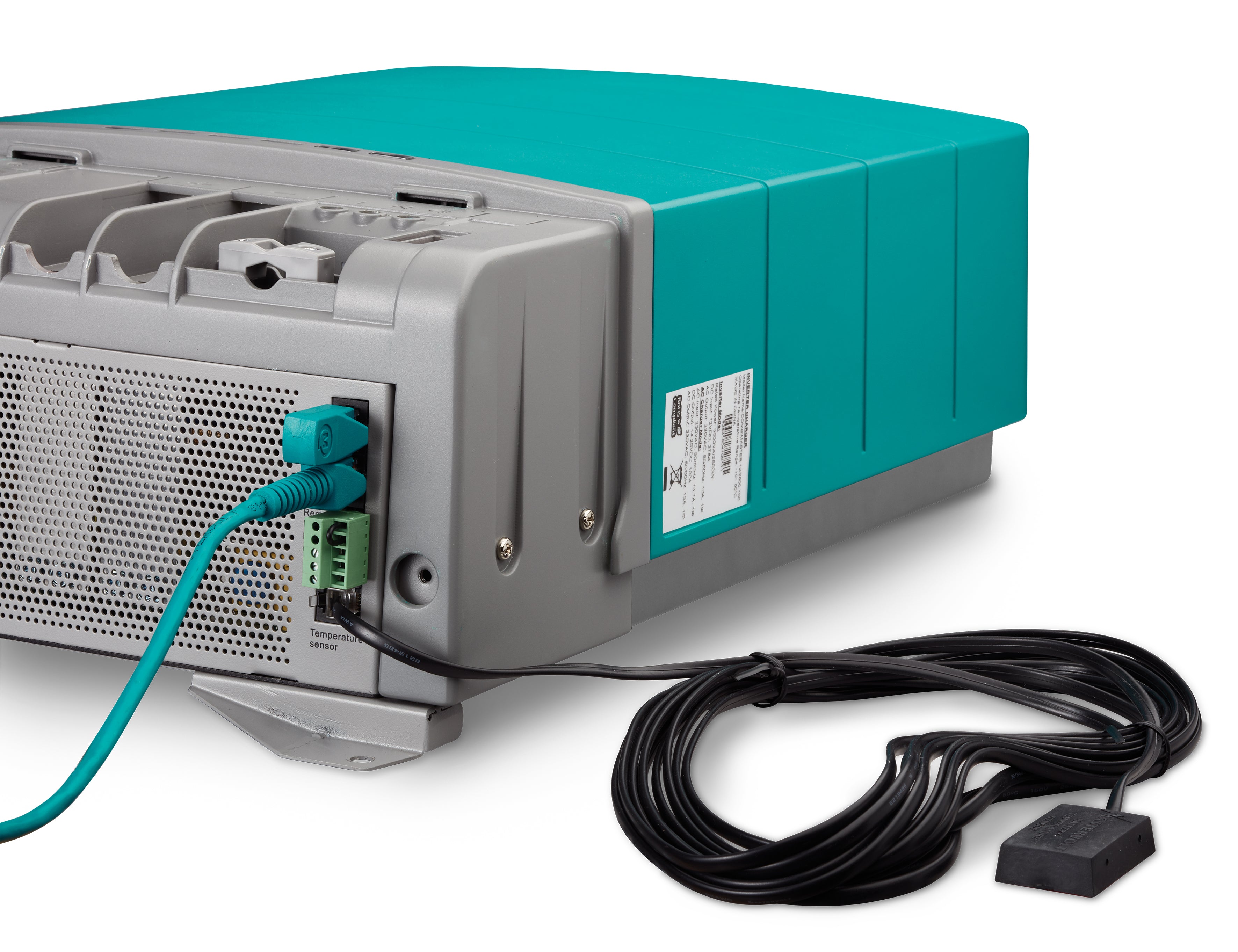

Battery Temperature Sensor |
Yes, included |
|
Battery Voltage Sense |
Automatic compensation |
Transfer System Specifications
|
Category |
Details |
|
AC Input |
25 A (switched) |
|
AC Output |
38 A |
|
AC Input Fuse |
Yes |
|
Transfer Speed |
10 ms |
|
Transfer Voltage Range |
Wide: 90–280 V / Narrow: 170–280 V |
|
Transfer Frequency Range |
40–65 Hz |
General Specifications
|
Category |
Details |
|
Galvanic Isolation |
Yes |
|
Display/Read-out |
LED display |
|
Dimensions (HxWxD) |
448 x 284 x 155 mm / 17.6 x 11.2 x 6.1 in |
|
Weight |
9.3 kg / 20.5 lb |
|
Compliance |
CE, E-mark, AZ/NZS |
Technical Specifications
|
Category |
Details |
|
Charge Characteristic |
IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI (configurable) |
|
Recommended Battery Capacity |
180–500 Ah (based on gel batteries) |
|
Ground Relay |
Yes, configurable via mechanical jumper |
|
Temperature Range (Ambient) |
-25 °C to 60 °C (derating > 40 °C) |
|
Cooling |
Vario fan |
|
Protection Degree |
IP23 (vertical mounting) |
|
Safety Class |
IEC Protection Class I |
|
Humidity Protection |
Conformal coating, max. 95% RH, non-condensing |
|
Protections |
Over-temperature, overload, short circuit, high/low battery voltage |
|
Power Assist |
Yes, supports AC input with battery power |
|
Power Sharing |
Yes, AC input fuse setting selectable |
|
MasterBus Compatible |
Yes |
|
CZone / NMEA 2000 Compatible |
Yes |
