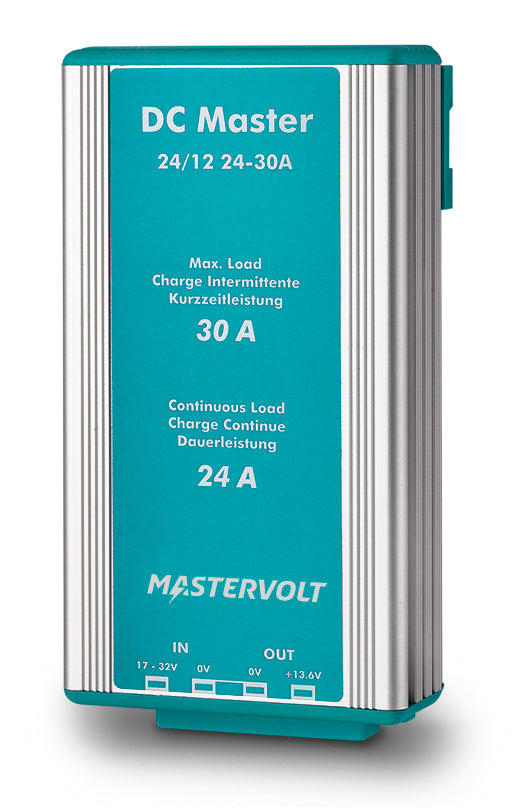

Mastervolt Converter 24/12-24A non-isolated DC master
Mastervolt Converter 24/12-24A non-isolated DC master
DISCRIPTION
DISCRIPTION
Device Specifications – DC-DC Converter (30A / 408 W Model)
General Specifications
|
Category |
Details |
|
Nominal Output Voltage |
13.6 V |
|
Max. Output Power |
408 W |
|
Nominal Output Power |
326 W |
|
Max. Output Current (2 min intervals) |
30 A |
|
Continuous Output Current |
24 A |
|
Nominal Input Voltage |
24 V |
|
Input Voltage Range (Max.) |
20–32 V DC (35 V max.) |
|
Galvanic Isolation |
No |
|
Stabilised |
Yes |
|
Dimensions (HxWxD) |
167 x 87 x 50 mm / 6.6 x 3.4 x 2.0 in |
|
Weight |
0.62 kg / 1.4 lb |
|
Compliance |
CE |
Technical Specifications
|
Category |
Details |
|
DC Consumption |
< 15 mA |
|
Connections |
Fast-on |
|
Temperature Range (Ambient) |
-25 °C to 80 °C (derating > 30 °C) |
|
Cooling |
Natural cooling |
|
Protection Degree |
IP53 |
