Description

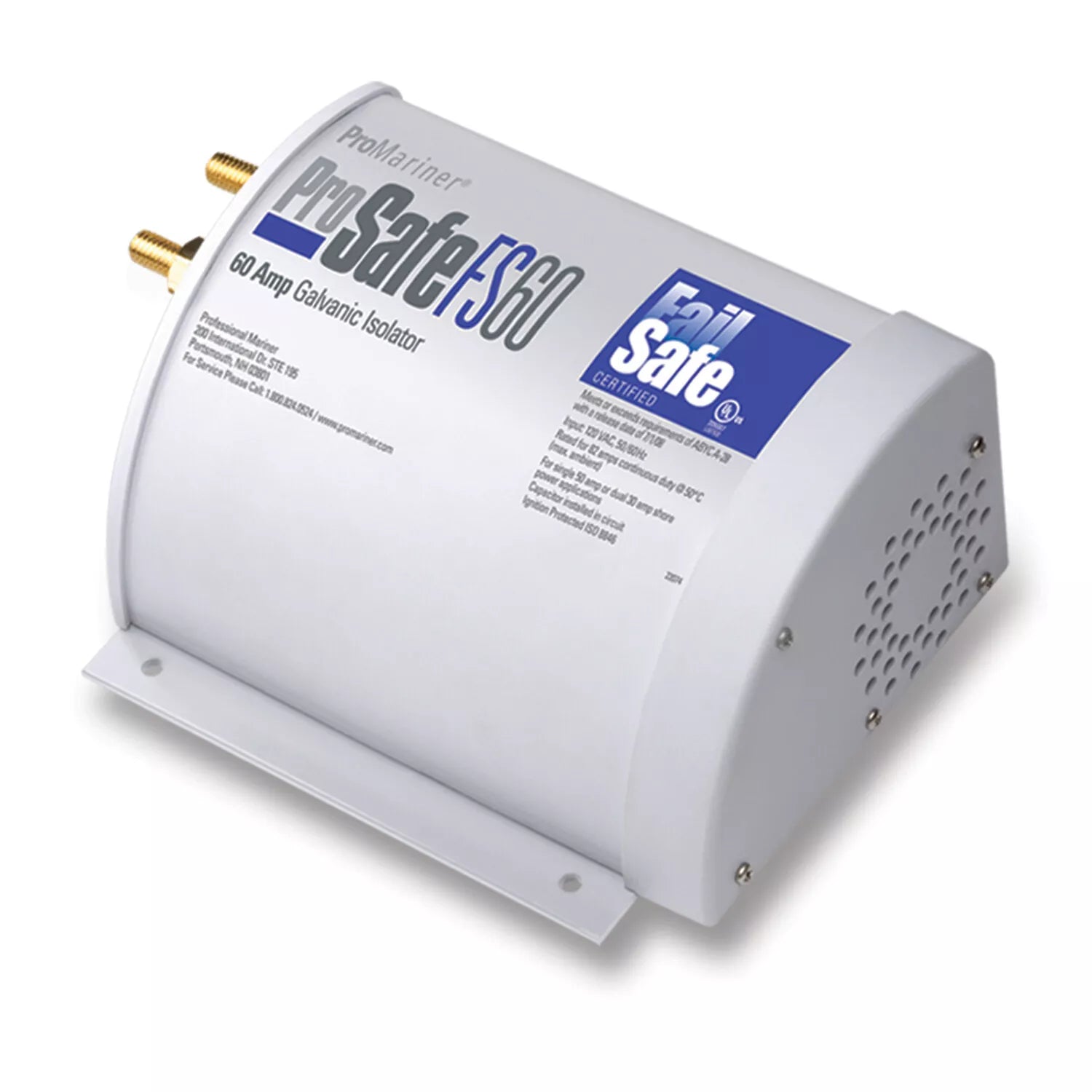

ProMariner's 60 Amp ProSafe Fail Safe Galvanic Isolator is built on robust FlatPack semiconductor platforms that ensure in the event of a failure, the failure is safe by not compromising the ground continuity on-board when connected to AC Shore Power.
Features:
- Robust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents of 3,000 amps for the required duration period
- Ignition protected - meets ISO 8846 and can be mounted within an engine compartment
- Gold plated terminations
- ABYC A-28 July '08 Compliant and Fail Safe Certified: Certified by Underwriters Laboratories (UL)
- Insures shore power safety ground wire is maintained through the isolator
60 Amp Specifications:
- Shore cord inlet compatibility: Single 50 or Dual 15's, 16's, 20's or 30's
- VAC: 120 / 240V AC
- Max amps: 82
- Hz: 50 or 60 HZ
- Max temperature: 50° C
- Dimensions (LxWxH): 7.25" x 6.5" x 3.75"
- Weight: 3.7 lbs
DOWNLOADS
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Smarter Power. Safer Seas. Trusted Gear.
Protects Your System
Prevents starter battery drain by isolating house loads when the engine is off—ideal for dual battery setups.
Corrosion Protection
Blocks low-voltage DC currents that cause galvanic corrosion while maintaining full AC safety ground connection.
Clean Sine Wave Output
Provides a pure, clean sine wave to protect sensitive electronics and ensure optimal performance of onboard devices.
