RULE - Shower Drain System Multi-Port Inlet M98B
RULE - Shower Drain System Multi-Port Inlet M98B
DISCRIPTION
DISCRIPTION

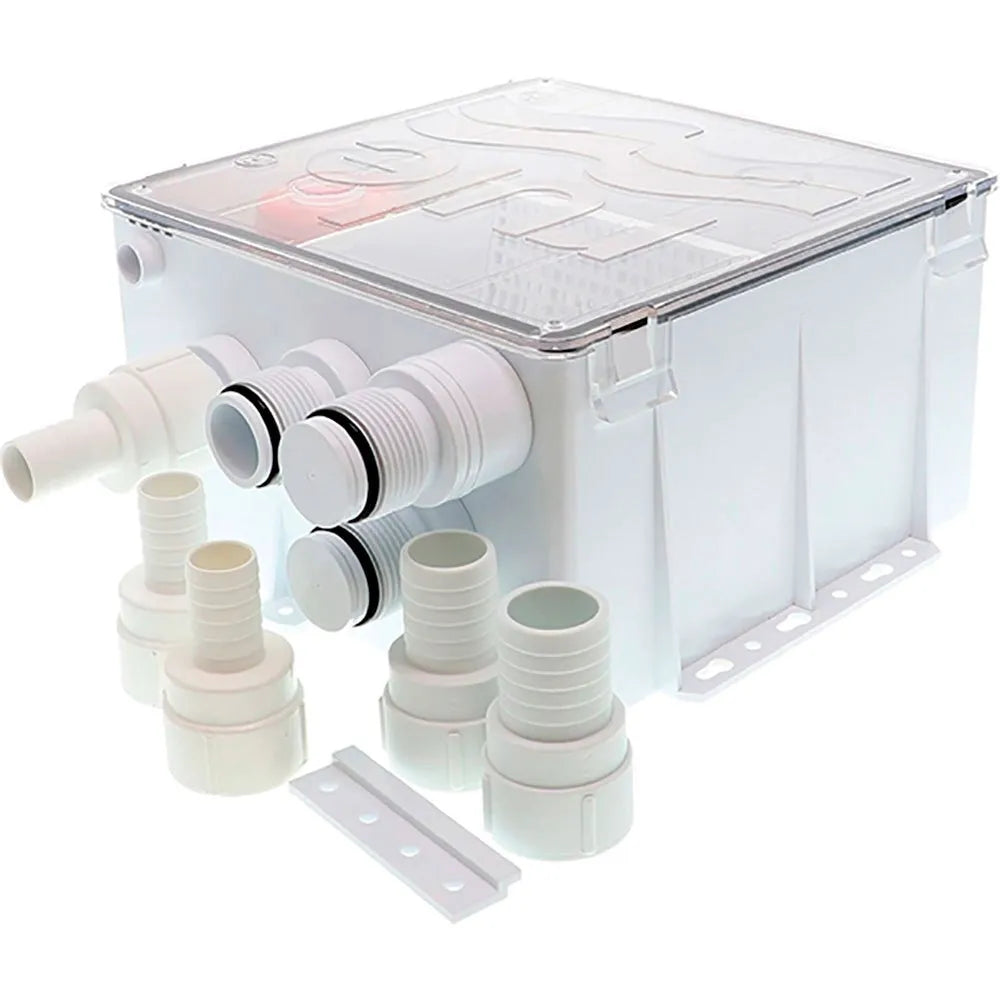

Rule Shower Drain System – 800 GPH (M98B)
The Rule Shower Drain System provides reliable and efficient drainage for marine showers, offering both 12V and 24V options. Equipped with a high-performance 800 GPH submersible pump, this system is perfect for efficient water removal in tight spaces, with a multi-port inlet for flexible hose connections.
Key Features:
- Flow Rate: 800 GPH (50 L/min or 11 gallons/min)
- Voltage Options:
- M98B-12: 12V DC, Amp Draw: 2.9 Amp, Fuse Size: 5 Amp
- M98B-24: 24V DC, Amp Draw: 1.5 Amp, Fuse Size: 2.5 Amp
- Multi-Port Inlet: Compatible with 19mm (3/4″), 25mm (1″), or 29mm (1-1/8″) bore hoses
- Max Recommended Discharge Head: 2.5m (8.2 ft)
- Pump: Rule 800 Submersible
- Float Switch: Controlled by Rule-a-Matic automatic float switch
- Easy Maintenance: Clip-in, removable pump, strainer, and cover for easy cleaning
- Sealed Clear Cover: Screw-down cover for easy inspection
- Non-Return Valve: Integral to prevent backflow
- Ignition Protected: Safe for use in marine environments
Specifications:
- Dimensions: 230mm (L) x 240mm (W) x 130mm (H)
- Fuse Size: 5 Amp (M98B-12), 2.5 Amp (M98B-24)
- Pump Type: 800 GPH Submersible
