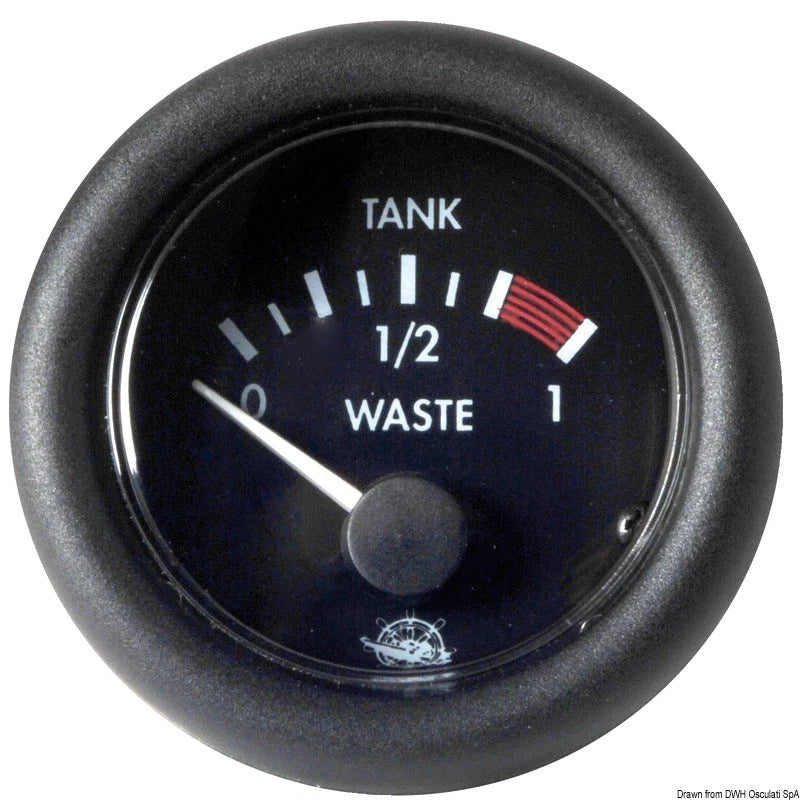

SAN GIORGIO Wastewater Level Blackwater Gauge 52mm 2" Black 12V VSG20494
SAN GIORGIO Wastewater Level Blackwater Gauge 52mm 2" Black 12V VSG20494
DISCRIPTION
DISCRIPTION
Technical Features – Waste Level Gauge (0–4/4 Scale)
|
Feature |
Specification |
|
Range |
0 – 4/4 Waste |
|

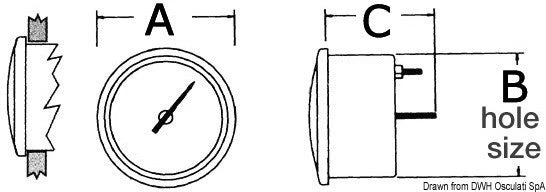

Case Diameter |
Ø52 mm |
|
Mounting Hole |
Ø53 mm |
|
Inputs |
300 – 10 Ω (resistive input) |
|
Cover Lens (RQ Series) |
Double lens anti-fog chamber |
|
Cover Lens (CR Series) |
Glass |
|
Backlighting |
Red |
|
Housing |
Nylon PA66 |
|
Connectors |
2 x RJ-45 |
|
Power Supply |
9 – 32V DC |
|
Current Consumption |
Max 100 mA + backlighting |
|
Operating Temperature |
-25°C to +70°C |
|
Protection Grade |
IP66 (Front) |
Notes:
- RQ Series offers enhanced anti-fog protection with a dual-lens chamber.
- CR Series features a glass lens for a classic finish.
- Compatible with standard marine and vehicle waste tank sensors.
- Ideal for marine, RV, or industrial fluid level monitoring.
