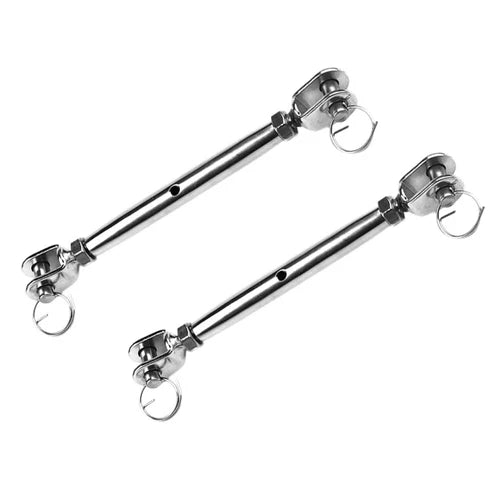

Stainless Steel Rigging Screw – Fork & Fork (Jaw & Jaw Turnbuckle)
Stainless Steel Rigging Screw – Fork & Fork (Jaw & Jaw Turnbuckle)
DISCRIPTION
DISCRIPTION
GENE
Type: Fork & Fork (Jaw & Jaw)
Material: AISI 316 Stainless Steel – Ideal for marine, architectural, and heavy-duty rigging applications.

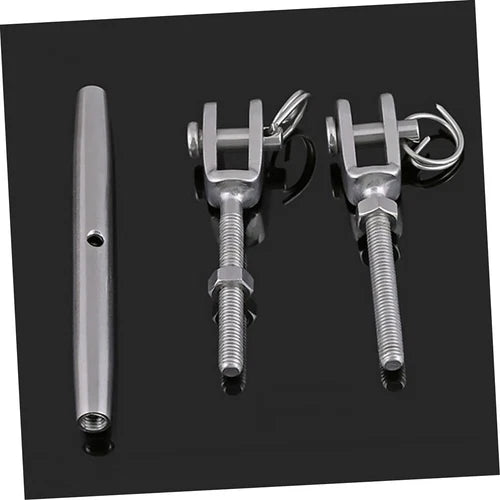

Design: Also known as a bottle screw, this turnbuckle features threaded fork ends for secure tensioning of wire ropes, cables, or rods. Both ends are equipped with clevis pins for easy connection and disconnection.
Applications:
- Yacht and marine rigging
- Shade sail installation
- Balustrades and architectural tensioning systems
- General load tensioning tasks

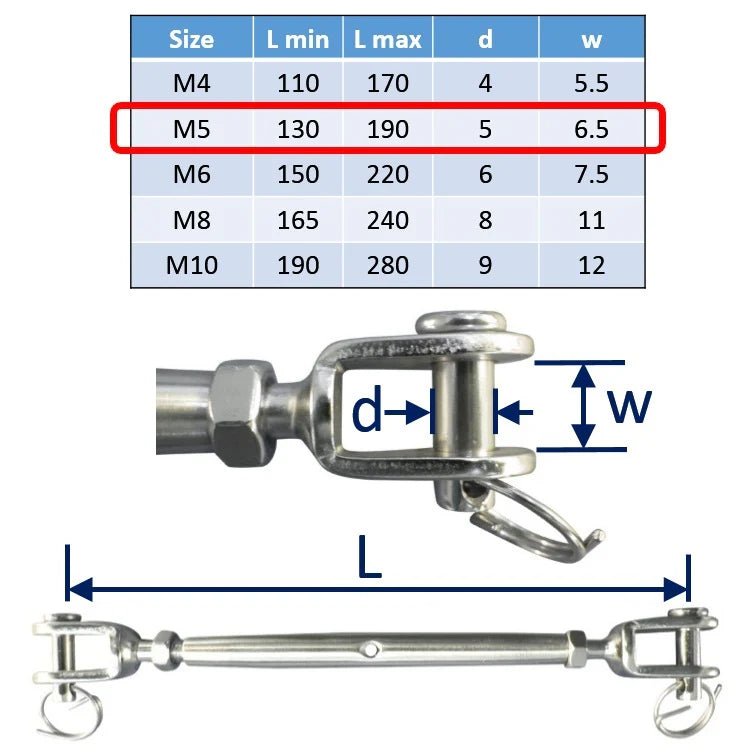

Available Sizes
|
Thread Size (Metric) |
Pin Diameter (D) (mm) |
Closed Length (mm) |
Open Length (mm) |
Working Load Limit (WLL) |
|
M6 |
6 mm |
~110 mm |
~160 mm |
~120 kg |
|
M8 |
8 mm |
~125 mm |
~190 mm |
~200 kg |
|
M10 |
10 mm |
~140 mm |
~220 mm |
~320 kg |
|
M12 |
12 mm |
~170 mm |
~260 mm |
~500 kg |
