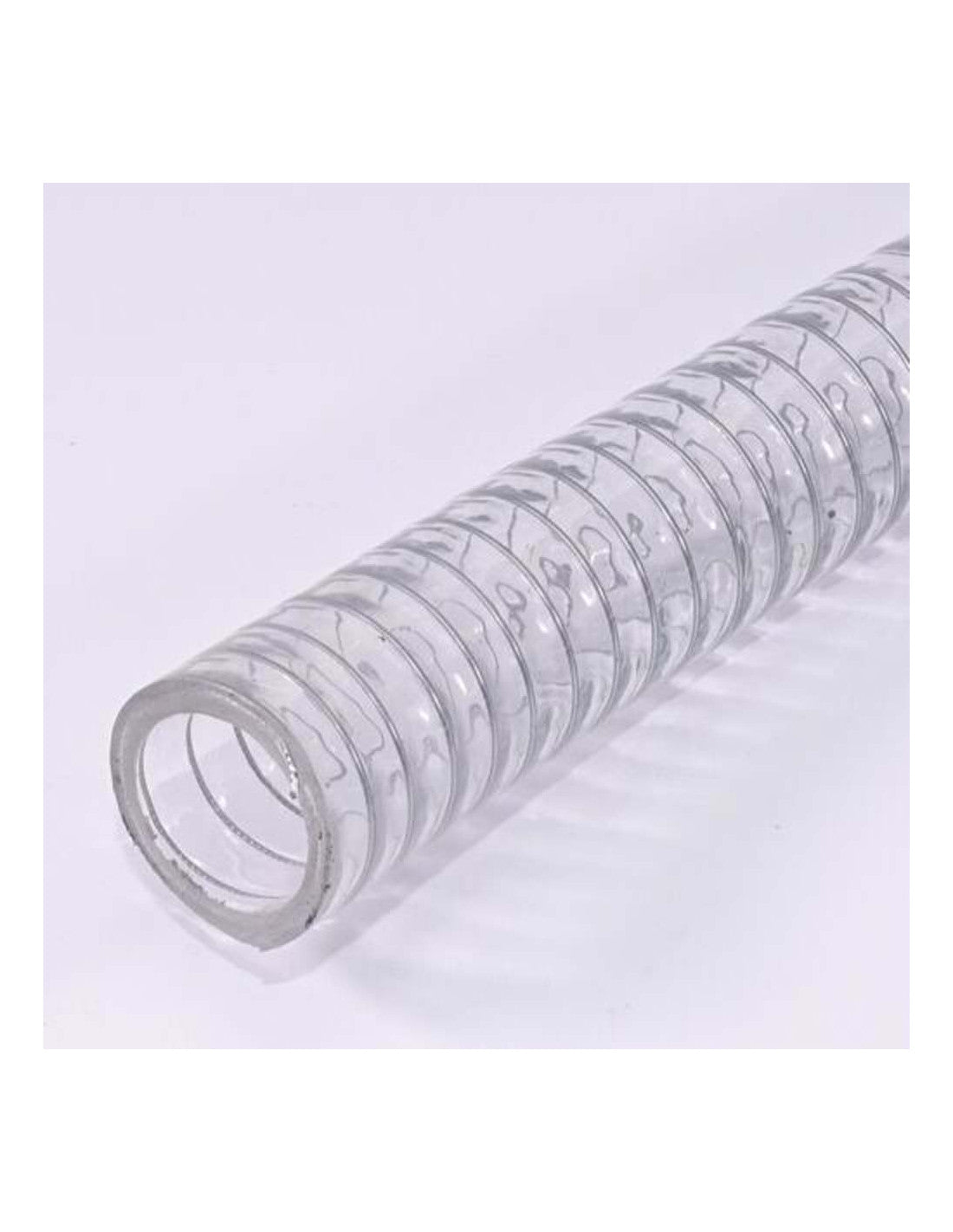

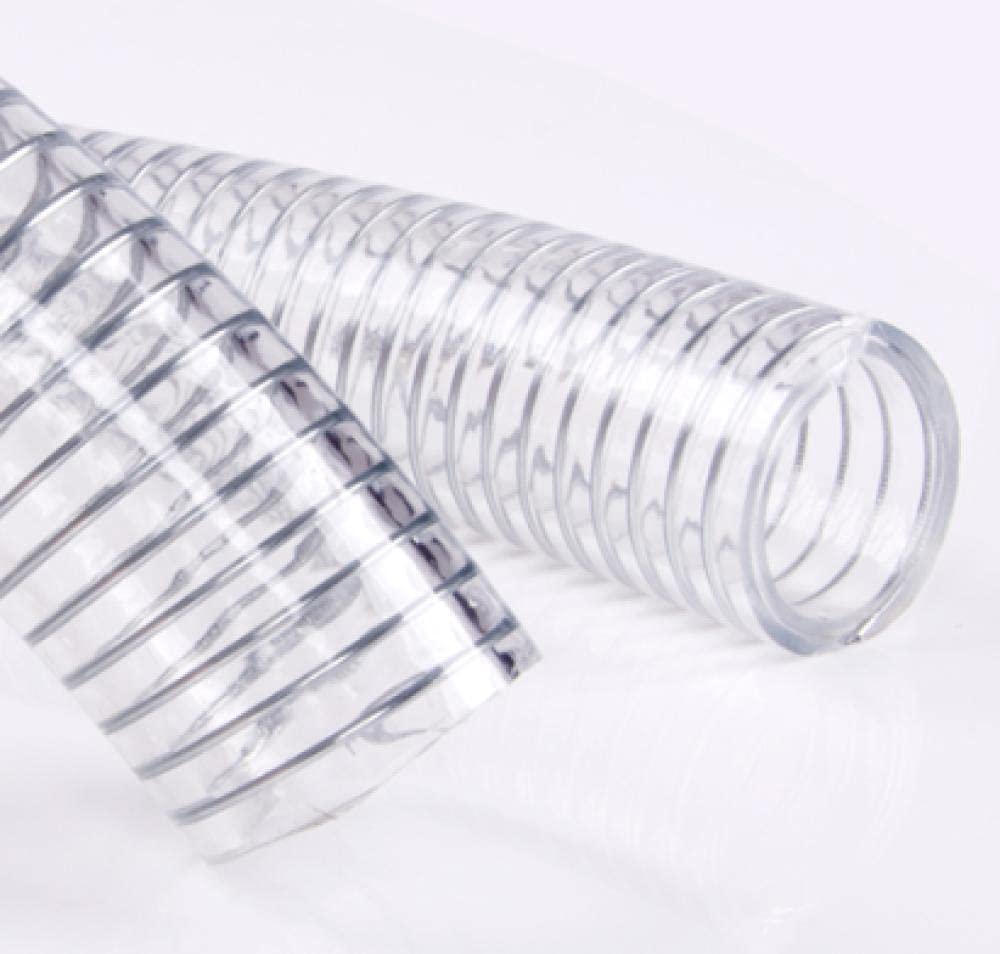

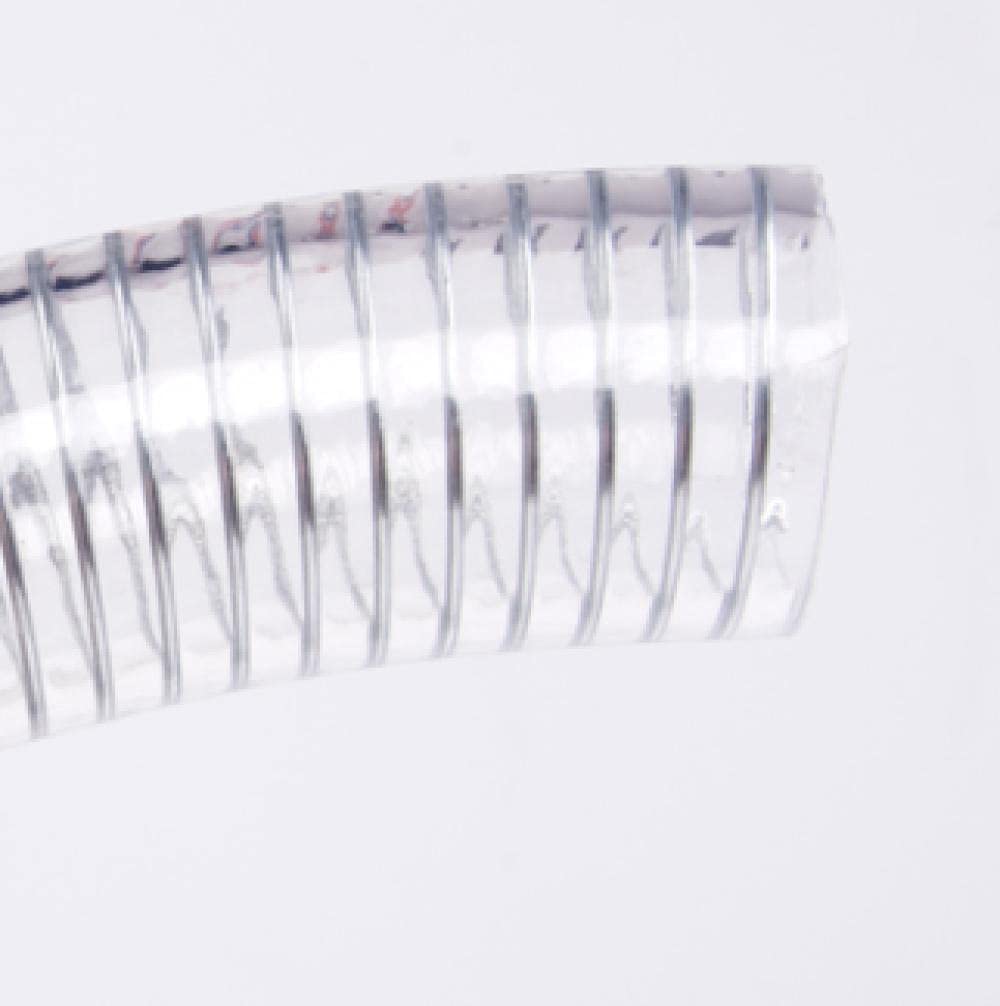

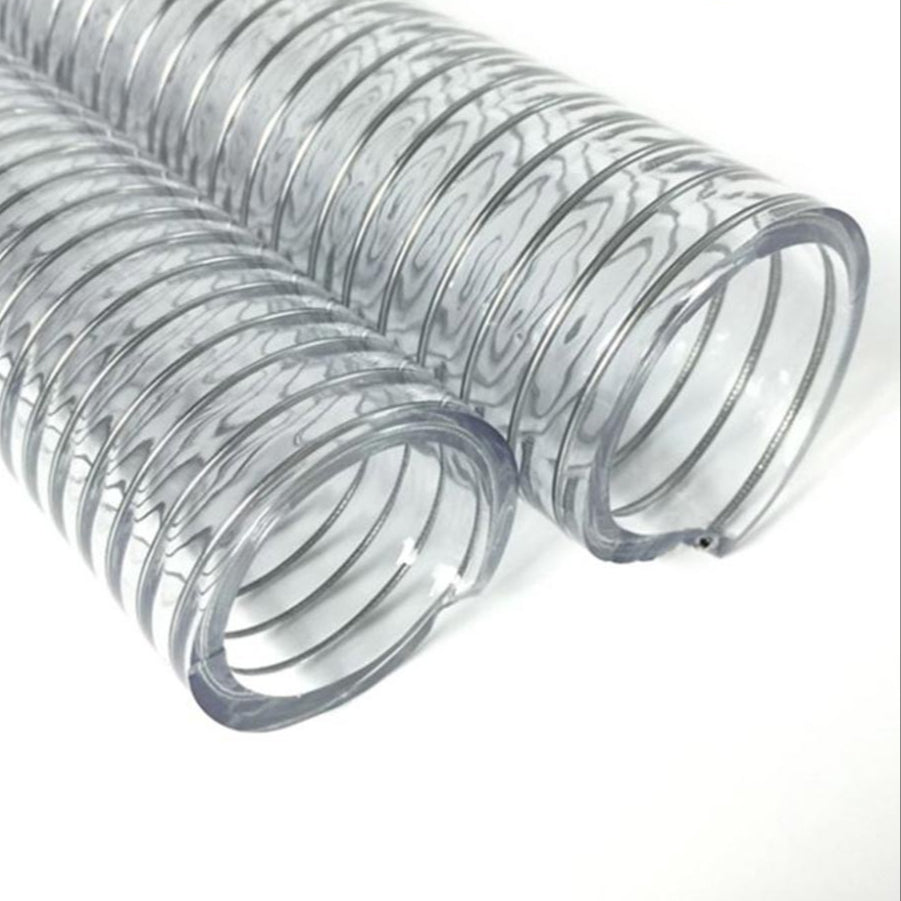

STEEL WIRE HOSE CLEAR ITALFLEX
STEEL WIRE HOSE CLEAR ITALFLEX
DISCRIPTION
DISCRIPTION
Key Features:
-
Reinforcement: High-tensile carbon steel helix for enhanced durability.
-
Material: Transparent PVC for clear visibility of contents.
-
Resistance: Excellent resistance to pressure, vacuum, and abrasion.
-
Flexibility: Highly flexible across a wide temperature range.
Inner Diameter |
Outer Diameter |
Size (Inch) |
Working Pressure (Bar) |
Burst Pressure (Bar) |
Weight (kg/m) |
Coil Length (m) |
12 mm |
18 mm |
1/2″ |
6.0 |
18.0 |
0.23 |
50 / 100 |
16 mm |
21 mm |
5/8″ |
6.0 |
18.0 |
0.26 |
50 / 100 |
19 mm |
26 mm |
3/4″ |
6.0 |
18.0 |
0.34 |
50 / 100 |
25 mm |
33 mm |
1″ |
5.5 |
16.5 |
0.50 |
50 / 100 |
32 mm |
41 mm |
1 1/4″ |
5.0 |
15.0 |
0.68 |
30 / 50 |
38 mm |
48 mm |
1 1/2″ |
4.5 |
13.5 |
0.85 |
30 / 50 |
50 mm |
61 mm |
2″ |
4.0 |
12.0 |
1.20 |
30 / 50 |
