battery switch E Selector 4 position 11001
battery switch E Selector 4 position 11001
DISCRIPTION
DISCRIPTION

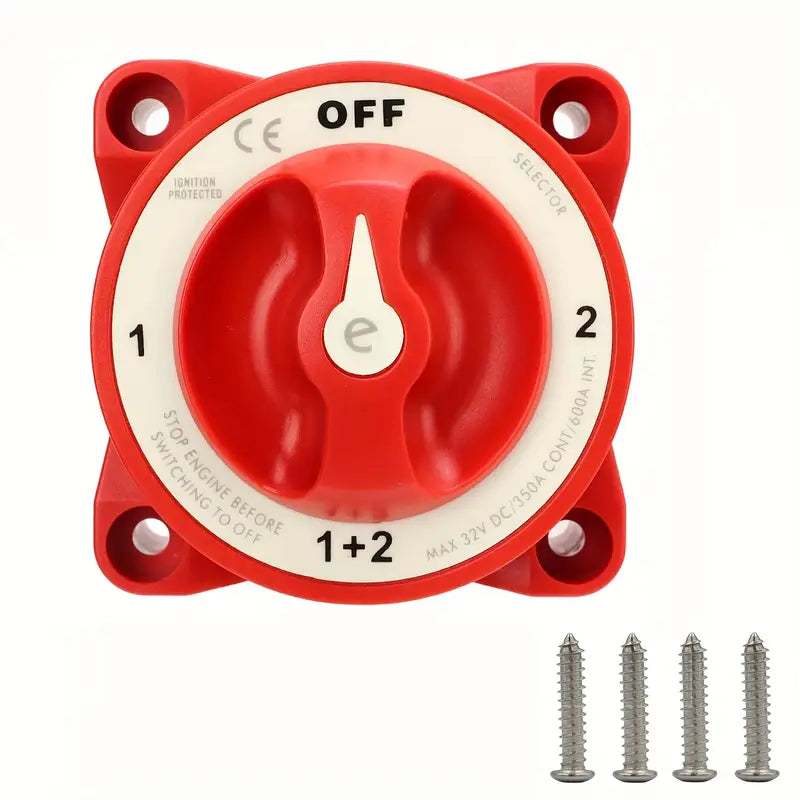

🔧 Product Specifications – Selector 3 Position Battery Switch
🧩 General Information
|
Parameter |
Details |
|
Switch Type |
Selector 3 Position |
|
Function |

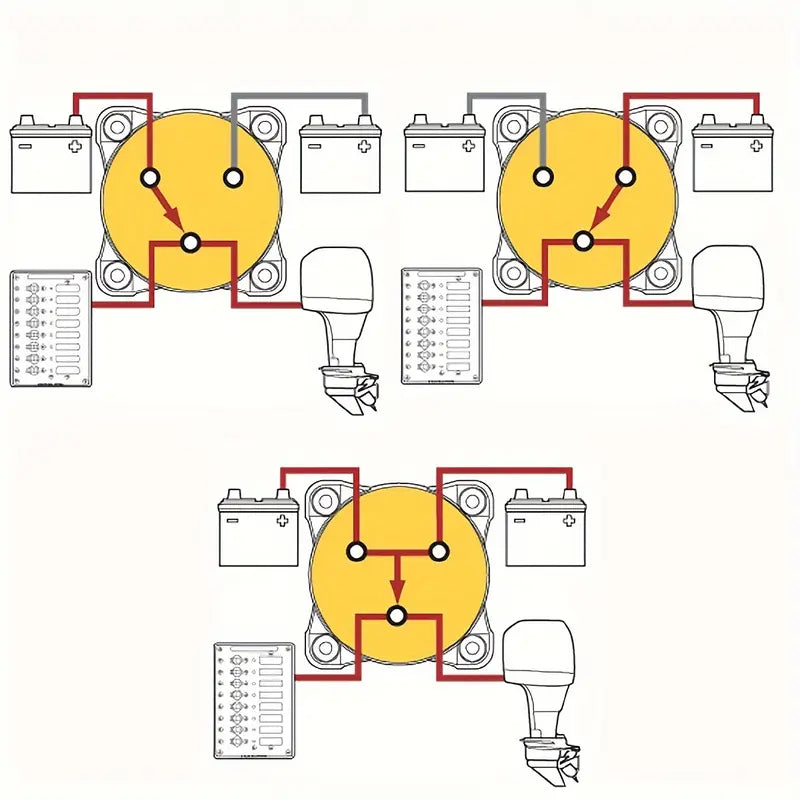

Switches isolated battery banks to all loads |
|
Color |
Red |
|
Switch Positions |
3 |
|
Battery Combine Feature |
No |
|
Battery Inputs |
2 |
|
Alternator Field Disconnect |
Yes — protects alternator if switch is turned OFF while running |
🔌 Electrical Ratings
|
Specification |
Value |
|
Maximum Voltage |
32V DC |
|
Continuous Rating |
350A |
|
Intermittent Rating (5 min) |
600A |
|
Starting Rating (30 sec) |
1200A |
|
Switching Rating |
25A |

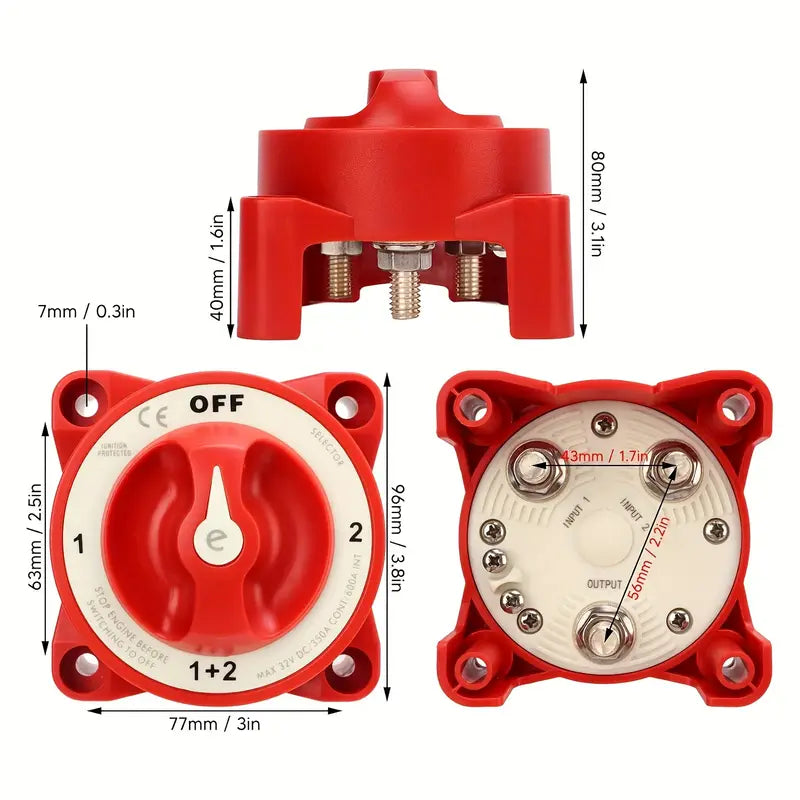

⚙️ Mechanical Specifications
|
Feature |
Detail |
|
Terminal Stud Size |
3/8" - 16 (M10) |
|
Terminal Stud Torque |
140 in-lb (15.82 Nm) |
|
Stud Material |
Tinned Copper |
|
Cable Size to Meet Ratings |
4/0 AWG (120mm²) |
|
Cable Clearance (for 4/0 AWG) |
1.10 in (27.94 mm) |
|
Mounting Holes |
Accept 1/4" (M6) screw |
|
Weight |
1.15 lb (0.52 kg) – 1.30 lb (0.59 kg) |
