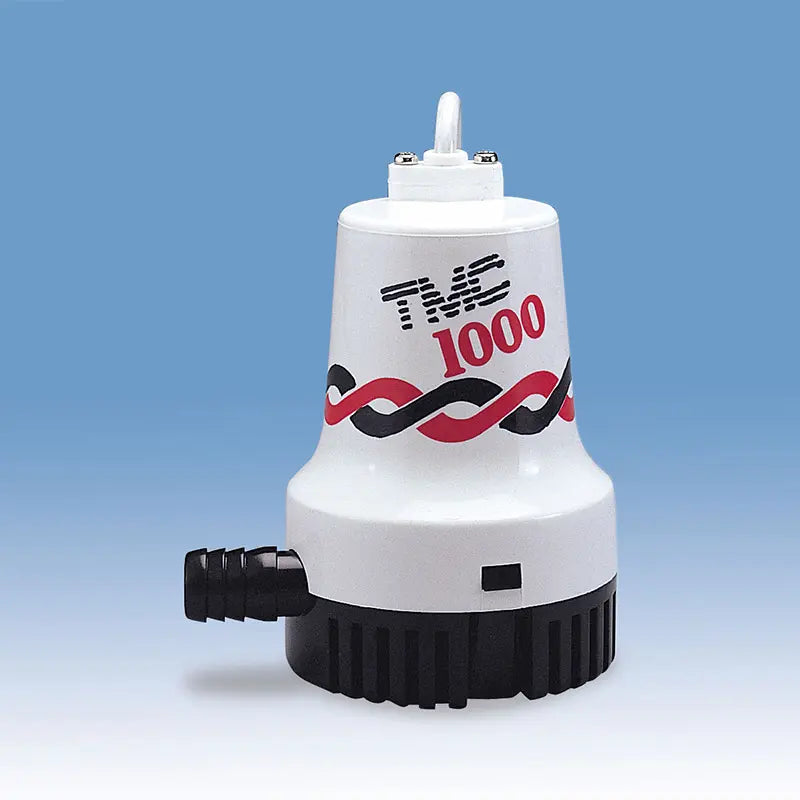

TMC-03304 – T20 Series Bilge Pump (1000 GPH, 12V / 24V)
The TMC-03304 from the T20 Series is a powerful and compact bilge pump suitable for both 12V and 24V DC systems. With a flow capacity of 1000 GPH, it’s designed to handle higher water volumes while maintaining energy efficiency and reliability in marine environments.
Specifications:
-
Motor Voltage: 12V / 24V
-
Flow Rate: 1000 GPH (3786 LPH)
-
Amp Draw:
-
5.5A (12V)
-
2.8A (24V)
-
-
Recommended Fuse Size:
-
8A (12V)
-
4A (24V)
-
-
Hose Diameter: 1-1/8″ (29 mm)
-
Max Delivery Head: 13 ft. (4 m)
-

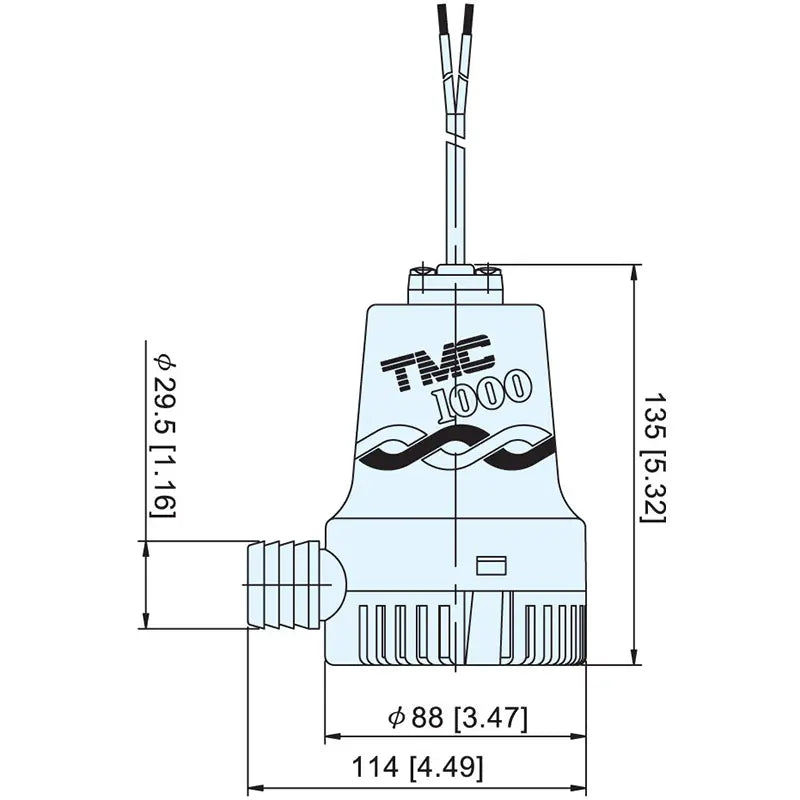

Dimensions: 114 x 88 x 135 mm (L x W x H)
-
4.49″ x 3.47″ x 5.31″
-
