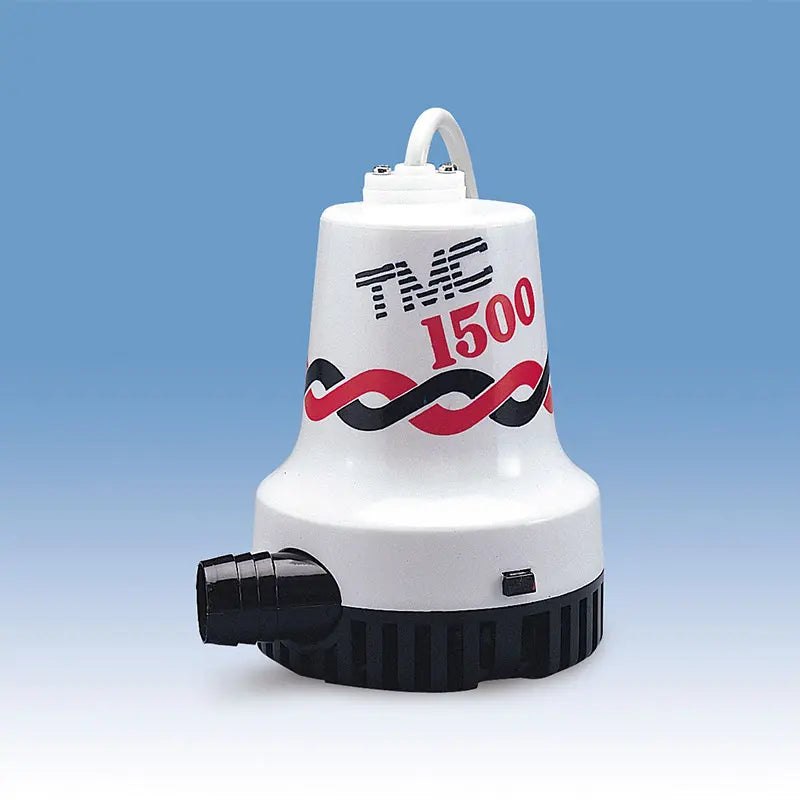

TMC-03606 – T20 Series Bilge Pump (1500 GPH, 12V / 24V)
TMC-03606 – T20 Series Bilge Pump (1500 GPH, 12V / 24V)
DISCRIPTION
DISCRIPTION
TMC-03606 – T20 Series Bilge Pump (1500 GPH, 12V / 24V)
The TMC-03606 from the T20 Series is a high-capacity bilge pump designed for reliable water removal in larger marine vessels. With a powerful 1500 GPH flow rate and compatibility with both 12V and 24V systems, it offers robust performance with a compact, marine-grade design.
Specifications:
- Motor Voltage: 12V / 24V
- Flow Rate: 1500 GPH (5676 LPH)
- Amp Draw:
- 8A (12V)
- 4A (24V)
- Recommended Fuse Size:
- 10A (12V)
- 5A (24V)
- Hose Diameter: 1-1/8″ (29 mm)
- Max Delivery Head: 10 ft. (3 m)

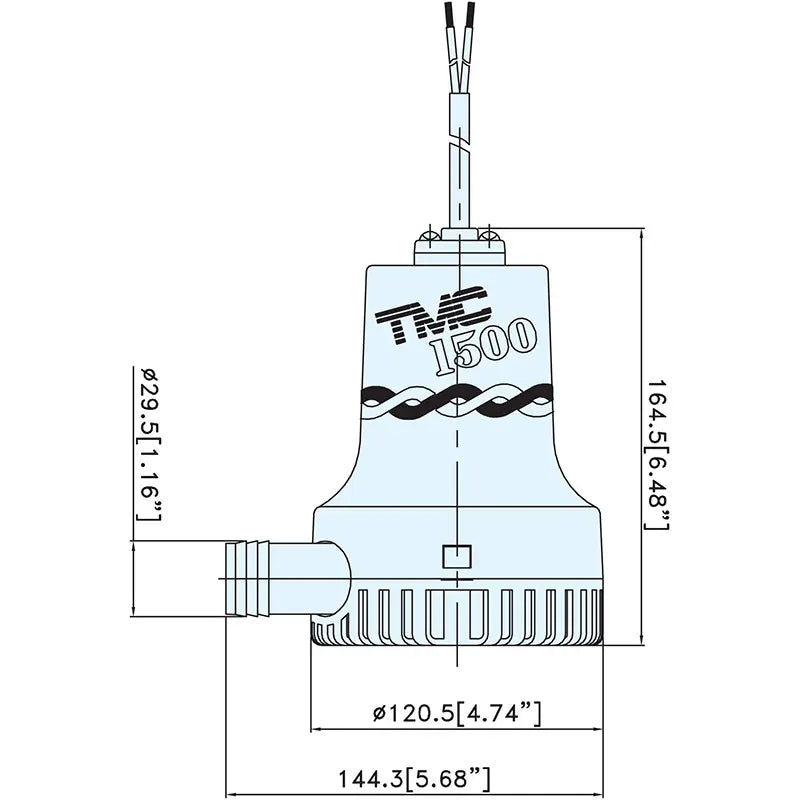

- Dimensions: 144.3 x 120.5 x 164.5 mm (L x W x H)
- 5.68″ x 4.74″ x 6.48″
